TP4056 1A Lithium Ion Battery Charging Board with Current Protection

SKU:AL3D0284

100 in stock

Rs. 14.03

Sale Sold out

Taxes included. Shipping calculated at checkout.

TYPE USB C MICRO USB

Overview

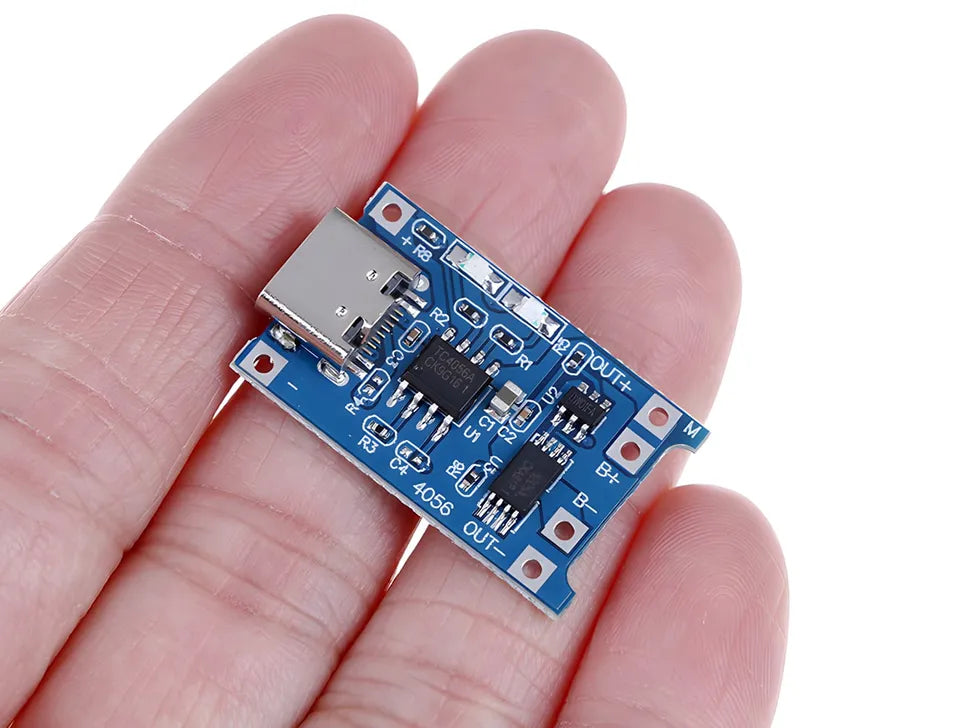

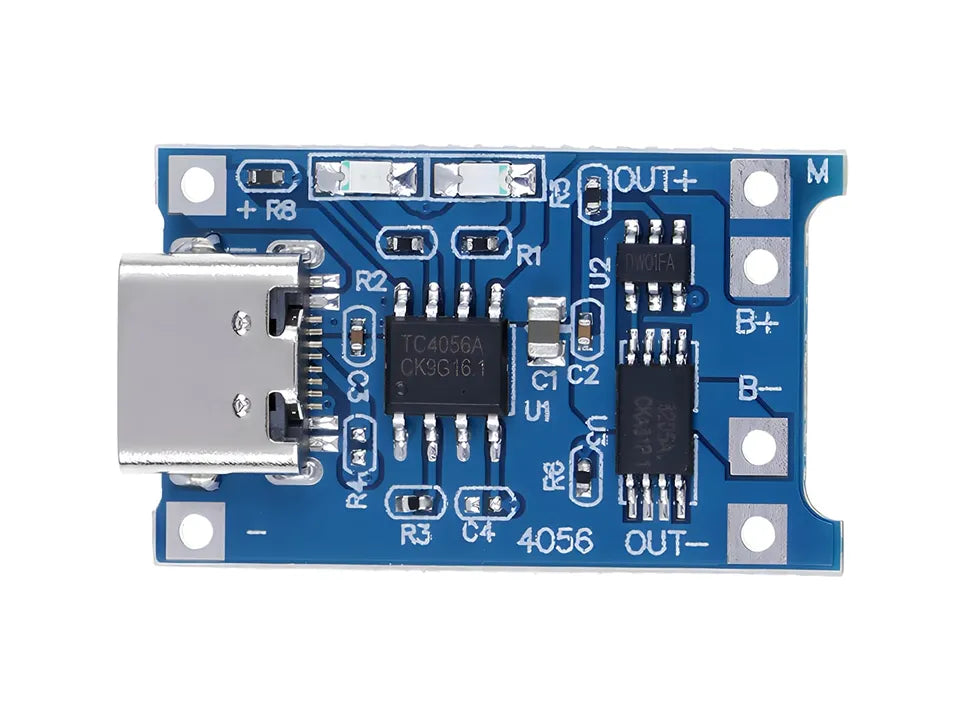

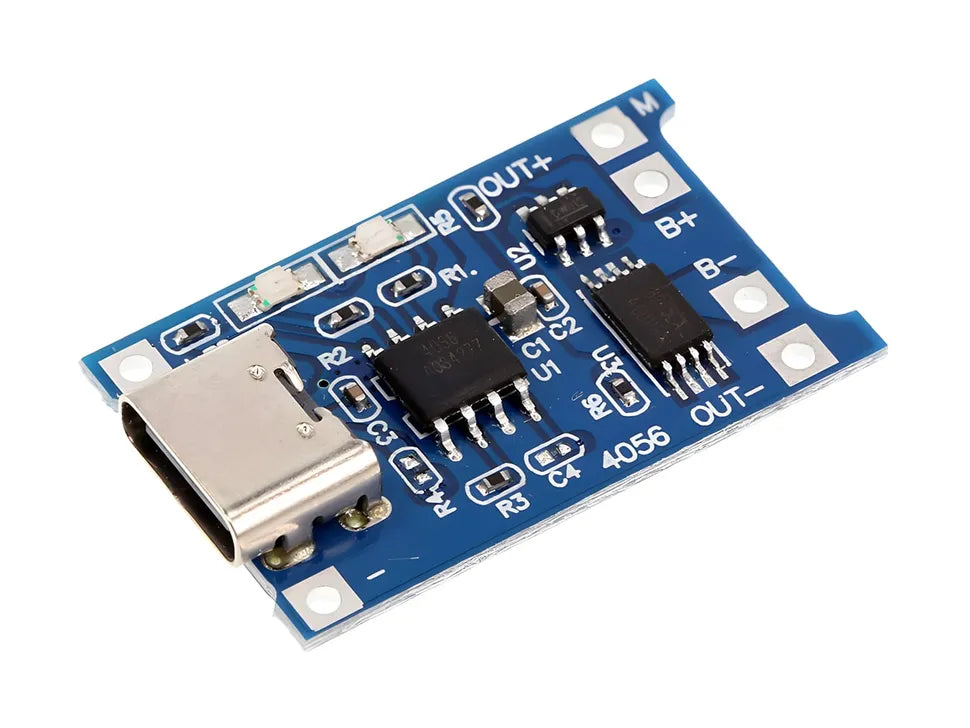

The TP4056 1A Lithium Ion Battery Charging Board with Current Protection is a small and efficient charging module ideal for single-cell Li-Ion or Li-Polymer battery charging. It features an onboard Type-C USB input and includes over-discharge voltage protection, overcurrent protection, and automatic charging termination.

The board supports a maximum charging current of 1000mA, making it perfect for embedded applications, battery packs, and DIY electronics projects. The onboard LED indicators provide clear charging status updates—red for charging and green for fully charged.

Specification

Technical details for TP4056 1A Lithium Ion Battery Charging Board.

Specification	Details
Input Voltage	5V
Charge Cut-off Voltage	4.2V ±1%
Maximum Charging Current	1000mA
Battery Over-discharge Protection Voltage	2.5V
Battery Pack Overcurrent Protection	3A
Charging Indicator	Red LED: Charging Green LED: Fully Charged
Input Interface	Type-C USB
Operating Temperature	-10°C to +85°C
Dimensions	28mm × 17mm
