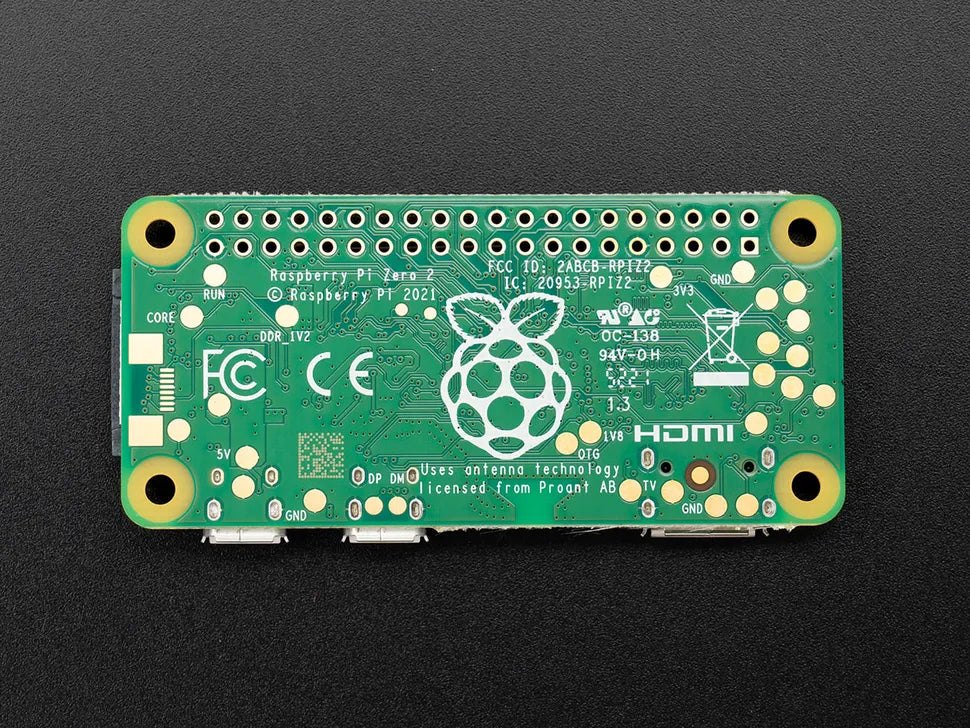

Raspberry Pi Zero 2 W / WH Single Board Computer

SKU:AL3D0415

Out of stock

Rs. 2,297.46

Sale Sold out

Taxes included. Shipping calculated at checkout.

MODEL ZERO 2 W ZERO 2 WH

Overview

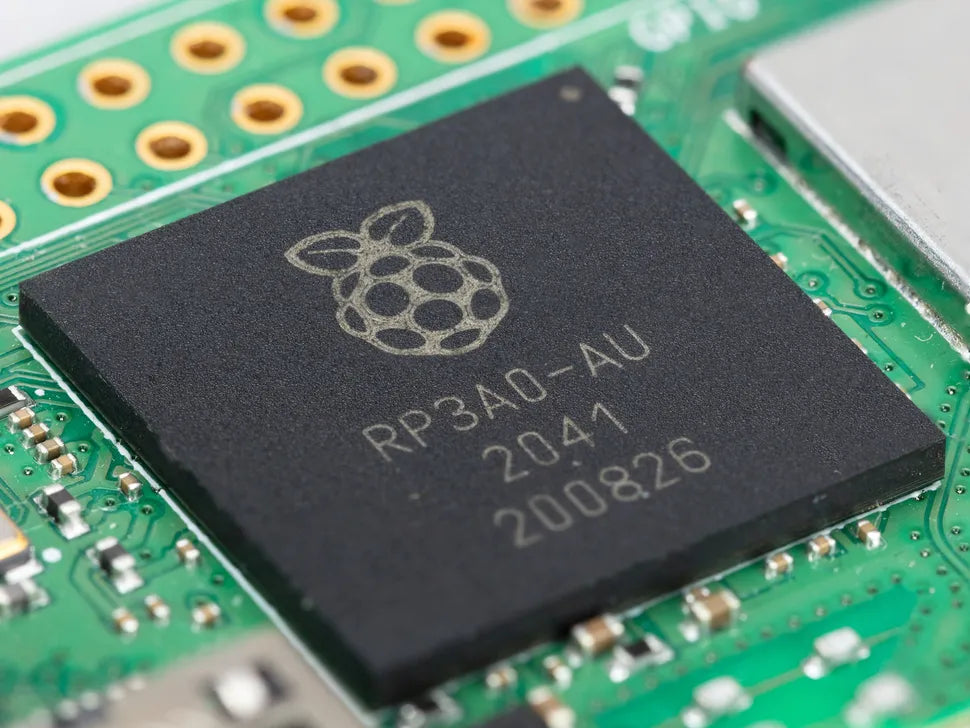

Latest addition to the Raspberry Pi family is the all new tiny Raspberry Pi Zero 2 W & Zero 2 WH (with Header) which packs in RP3A0, a custom-built SIP (system-in-package) designed by Raspberry Pi in the UK which has a quad-core 64-bit ARM Cortex-A53 processor clocked at 1GHz, integrating a Broadcom BCM2710A1 die with 512MB of SDRAM. The RP3A0 gives Raspberry PI Zero 2 W with 40% more single-threaded performance, and five times more multi-threaded performance, than the original single-core Raspberry Pi Zero. Also let's not forget that we get this improved performance in the same form factor as Pi Zero and Pi Zero W which makes it compatible with Pi Zero cases.

The "W" appending the Pi Zero 2 W clearly implies that it has an on board 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2 and support Bluetooth Low Energy (BLE).

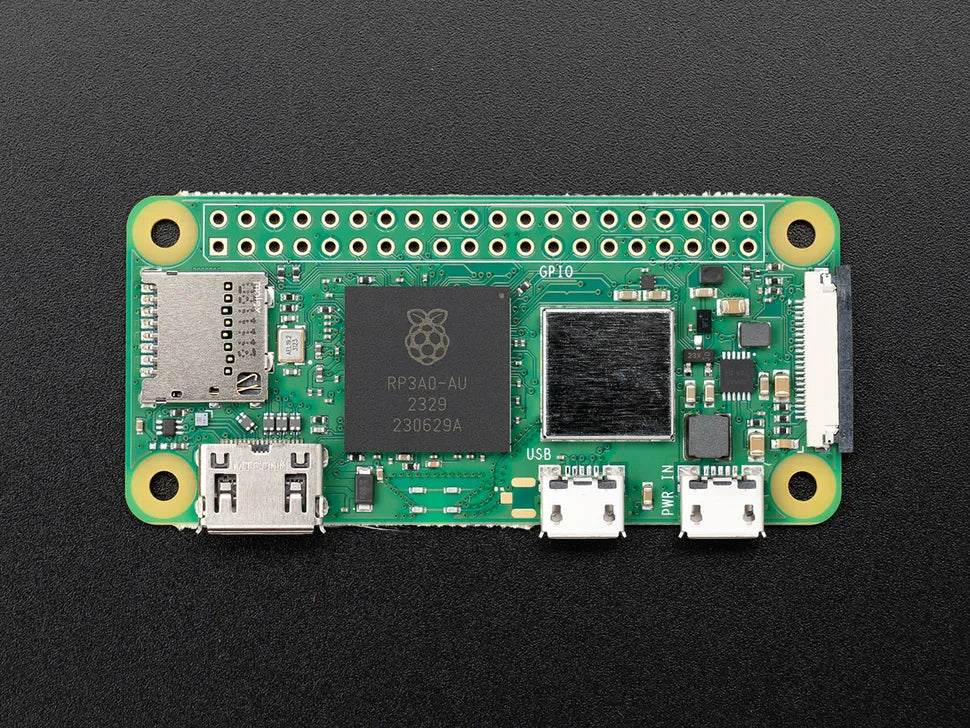

The board has a microSD card slot, a CSI-2 camera connector, a USB On-The-Go (OTG) port, and an unpopulated footprint for a HAT-compatible 40-pin GPIO header. It is powered via a micro USB socket. Video output is via a mini HDMI port; composite video output can easily be made available via test points if needed.

Mandatory Accessories for Zero 2 W

1. Power Supply (Micro-USB)

5V, minimum 2.5A recommended
Micro-USB connector (not USB-C)
Required to power the board reliably

2. microSD Card (with OS)

8GB minimum (16GB or higher recommended)
Used to store the operating system and files
Must be flashed with Raspberry Pi OS or compatible OS

3. Display Cable (Mini HDMI)

Mini HDMI to HDMI cable or adapter
Required if using an external monitor or TV
Supports up to 1080p output

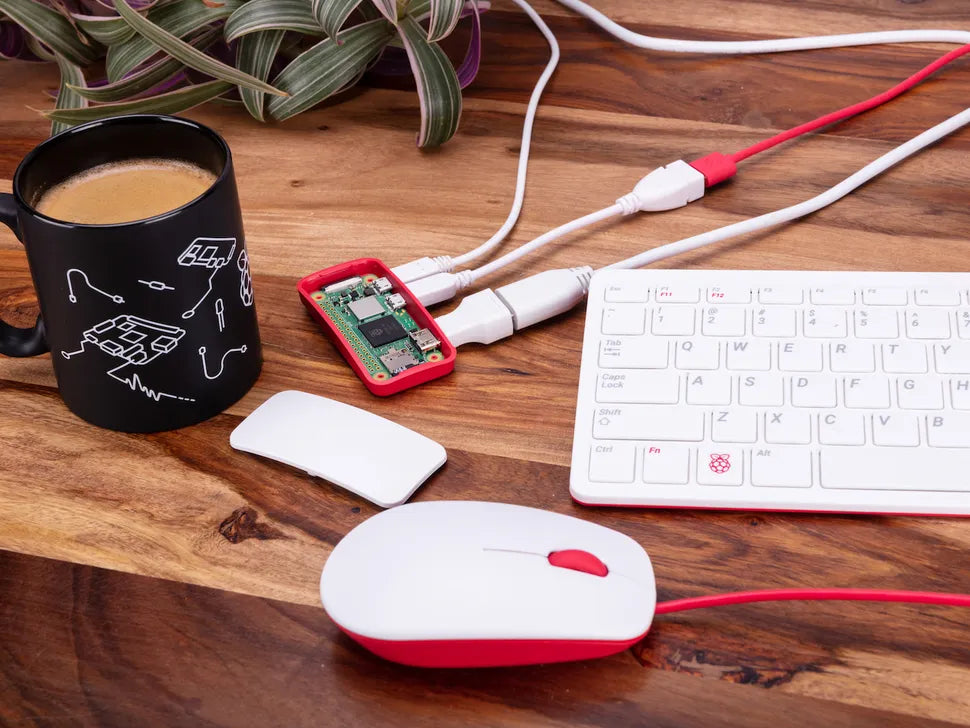

4. Input Device Support (USB OTG)

Micro-USB OTG cable
Needed to connect keyboard, mouse, or USB devices
Essential for initial setup without SSH

Specification

Technical details for Raspberry Pi Zero 2 W and Zero 2 WH Specification.

Processor	Broadcom BCM2710A1, quad-core 64-bit SoC (Arm Cortex-A53 @ 1GHz)
RAM	512MB LPDDR2
Video	HDMI Interface Composite Video
Multimedia	H.264, MPEG-4 decode (1080p30) H.264 Encode (1080p30) OpenGL ES 1.1, 2.0 Graphics
Connectivity	2.4GHz IEEE 802.11ac WiFi Bluetooth 4.2 (with BLE Support) microSD Card Slot
USB	1 × USB 2.0 interface with OTG
HDMI	Mini HDMI Port
CSI/DSI	CSI-2 Camera Connector

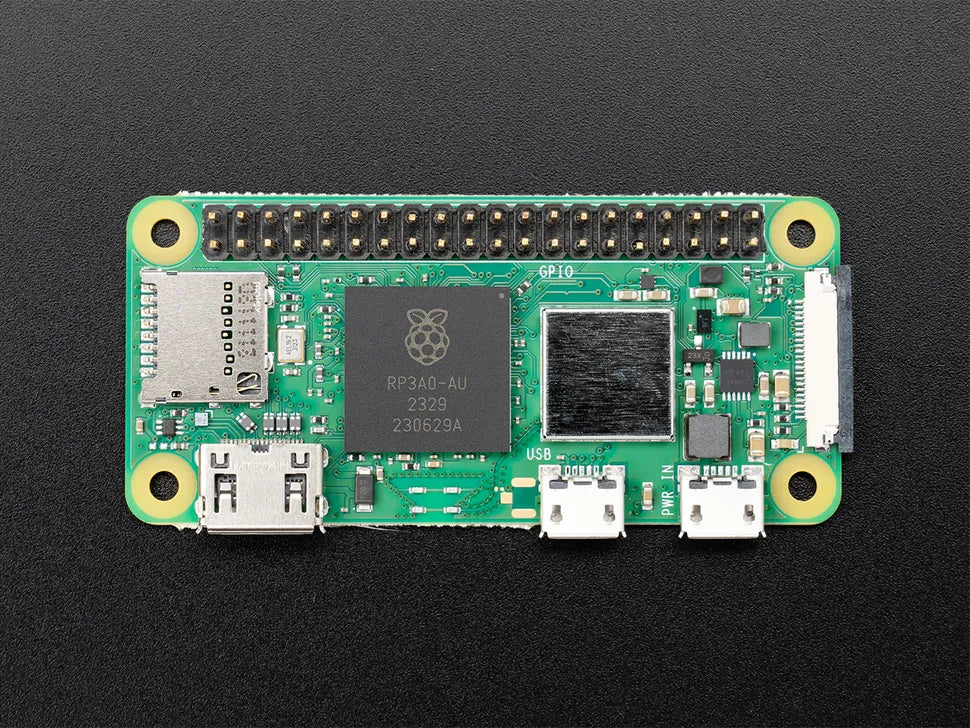

GPIO Header	Raspberry Pi 40-pin GPIO header
Input Power	5V DC 2.5A
Operating Temperature	-20°C to +70°C
Dimension	65 x 30 mm

Pinout

3V3 Power	1	2	5V Power
GPIO 2 (SDA)	3	4	5V Power
GPIO 3 (SCL)	5	6	Ground
GPIO 4	7	8	GPIO 14 (TXD)
Ground	9	10	GPIO 15 (RXD)
GPIO 17	11	12	GPIO 18 (PCM_CLK)
GPIO 27	13	14	Ground
GPIO 22	15	16	GPIO 23
3V3 Power	17	18	GPIO 24
GPIO 10 (MOSI)	19	20	Ground
GPIO 9 (MISO)	21	22	GPIO 25
GPIO 11 (SCLK)	23	24	GPIO 8 (CE0)
Ground	25	26	GPIO 7 (CE1)
GPIO 0 (ID_SD)	27	28	GPIO 1 (ID_SC)
GPIO 5	29	30	Ground
GPIO 6	31	32	GPIO 12 (PWM0)
GPIO 13 (PWM1)	33	34	Ground
GPIO 19 (PCM_FS)	35	36	GPIO 16
GPIO 26	37	38	GPIO 20 (PCM_DIN)
Ground	39	40	GPIO 21 (PCM_DOUT)
