Artlayer3D

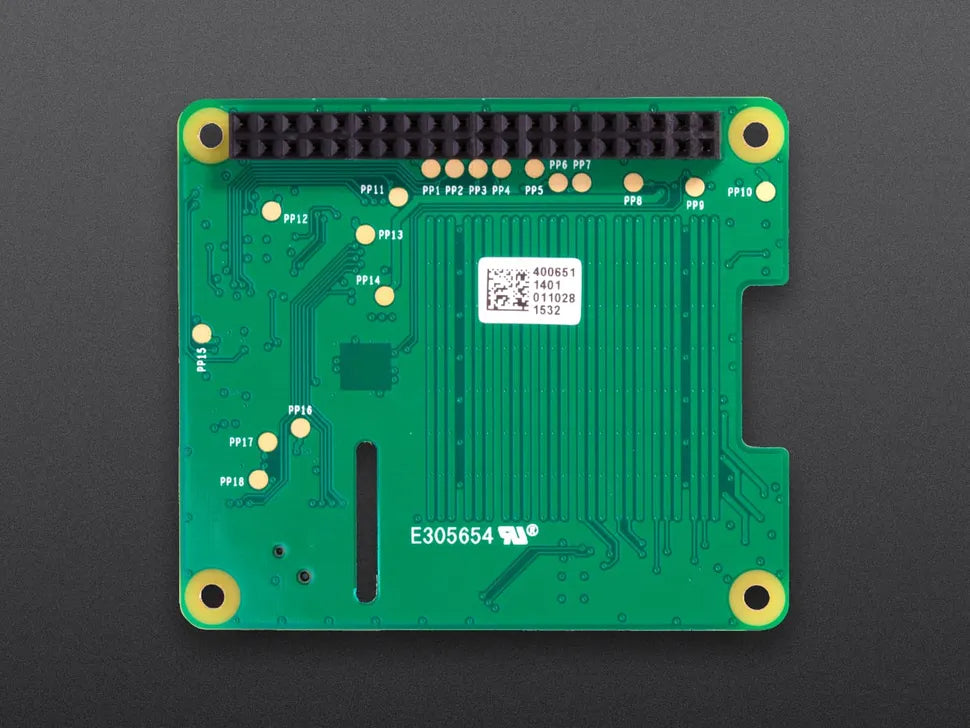

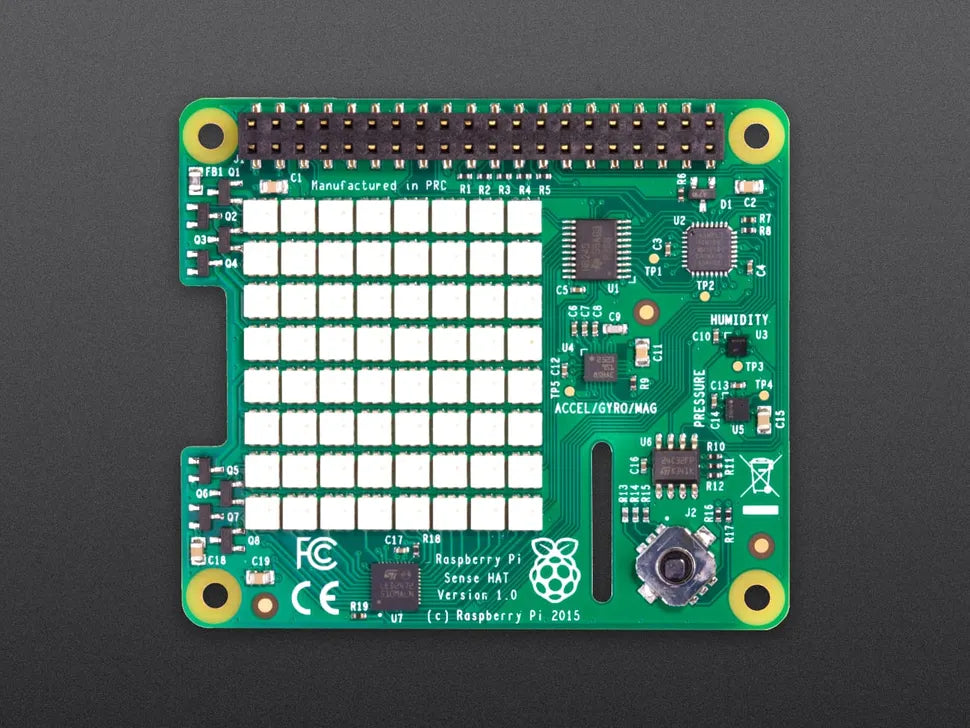

Raspberry Pi Sense Hat

Name: Raspberry Pi Sense Hat
Brand: Artlayer3D
SKU: AL3D0505
Price: 4076.78 INR
Availability: InStock

SKU:AL3D0505

100 in stock

Rs. 4,076.78

Sale Sold out

Taxes included. Shipping calculated at checkout.

Overview

The Raspberry Pi Sense HAT is an add-on board that transforms your Raspberry Pi into a sensory device. It is equipped with sensors for pressure, humidity, temperature, color, orientation, and movement.

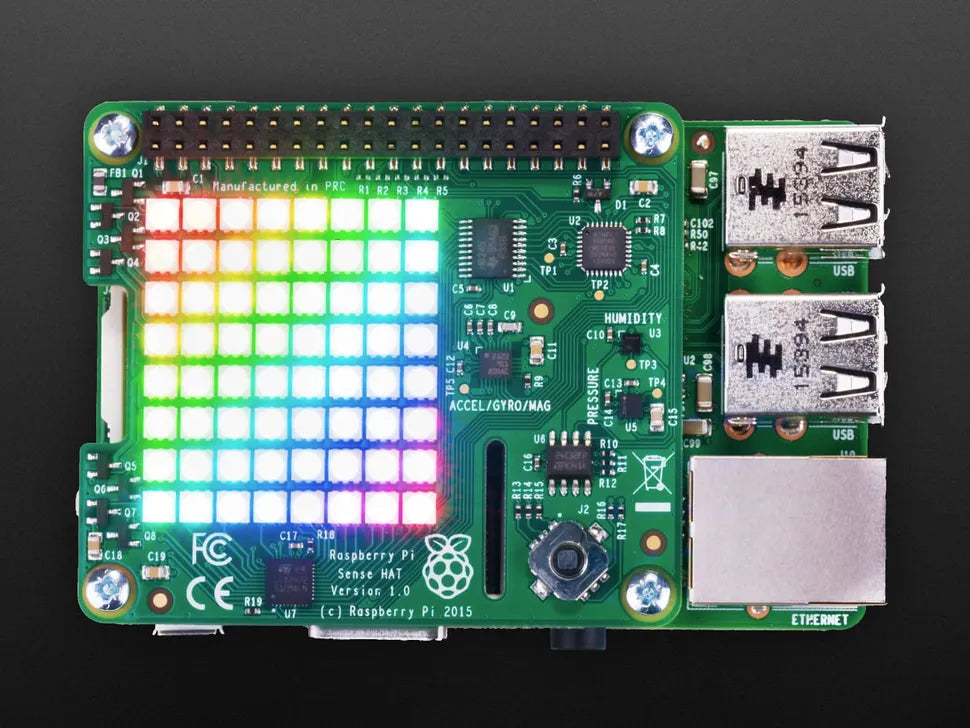

It also has a 8x8 RGB LED matrix that vividly displays sensor data, while the five-button joystick enables user interaction and with the backing of an official Python library, using the Sense HAT is a breeze, providing easy access to its suite of sensors, colorful LED matrix, and joystick.

Sense HAT is compatible with all Raspberry Pi models with a 40-pin GPIO header, it's easily controlled through an official Python library.

Sensors

Included sensors and components on the Raspberry Pi Sense HAT.

Gyroscope
Accelerometer
Magnetometer
Temperature
Barometric pressure
Humidity
Colour and brightness
8x8 LED Matrix
Joystick

Specification

Technical specification for Raspberry Pi Sense HAT

Pressure & Temperature Sensor	STMicro LPS25HB 260 to 1260 hPa absolute pressure range 24-bit pressure data output 0 to +65°C (±2°C) 16-bit temperature data output
Humidity & Temperature Sensor	STMicro HTS221 0 to 100% relative humidity range 15 to 40°C (±0.5°C) accurate temperature measurement range 16-bit data output
IMU Accelerometer Gyroscope Magnetometer	STMicro LSM9DS1 ±16g acceleration measurement range ±16g magnetometer measurement range ±2000dp gyroscope measurement range 16-bit resolution for each measurement channel
Color Sensor	TCS3400 RGB colour and brightness sensor
LED matrix	8×8 RGB LED display
Joystick	5-button miniature joystick with up, down, left, right and middle-click
