Raspberry Pi PoE+ HAT
Raspberry Pi PoE+ HAT
SKU:AL3D0503
Out of stock
Couldn't load pickup availability
Overview

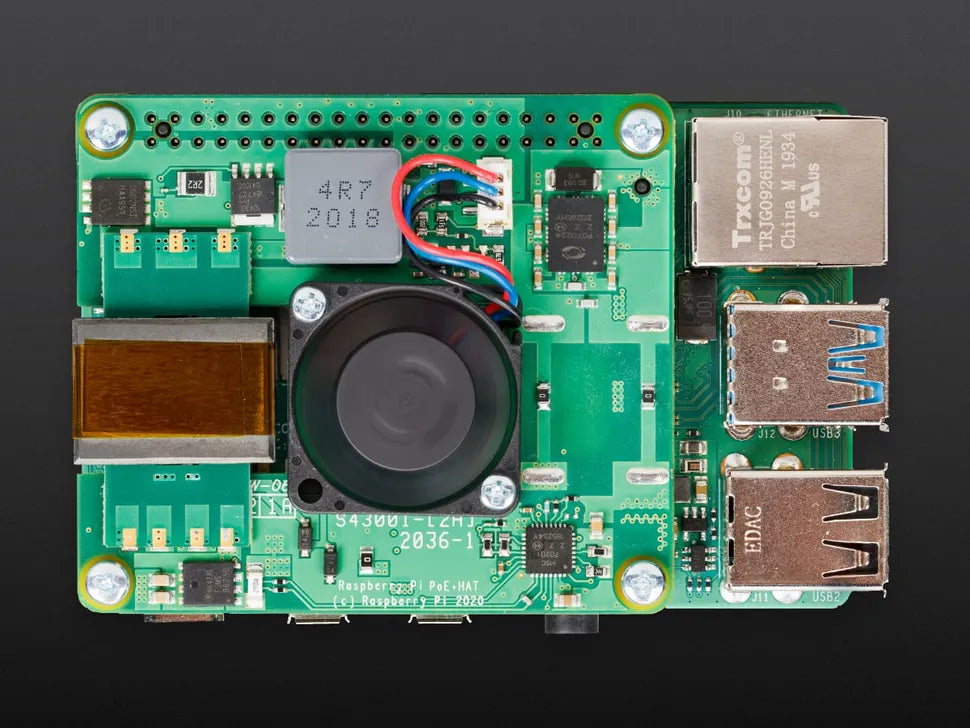

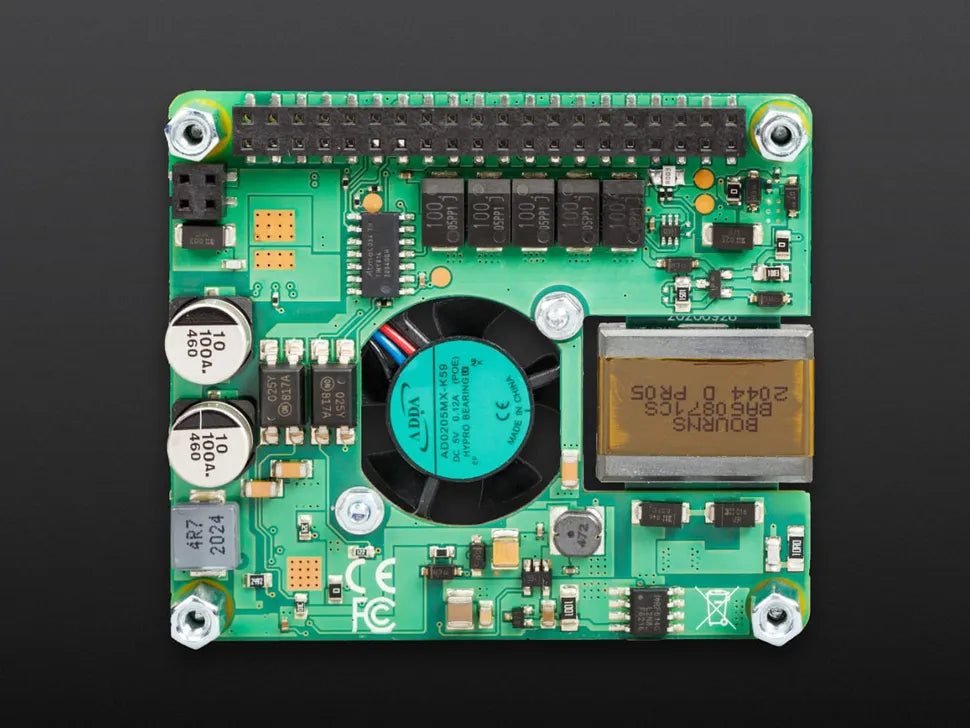

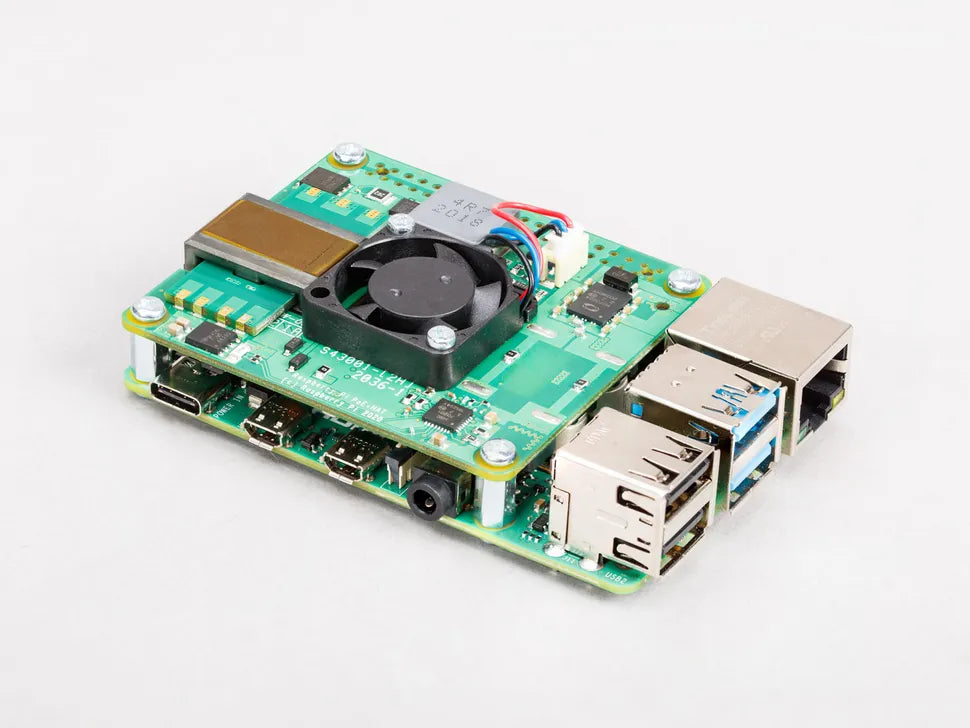

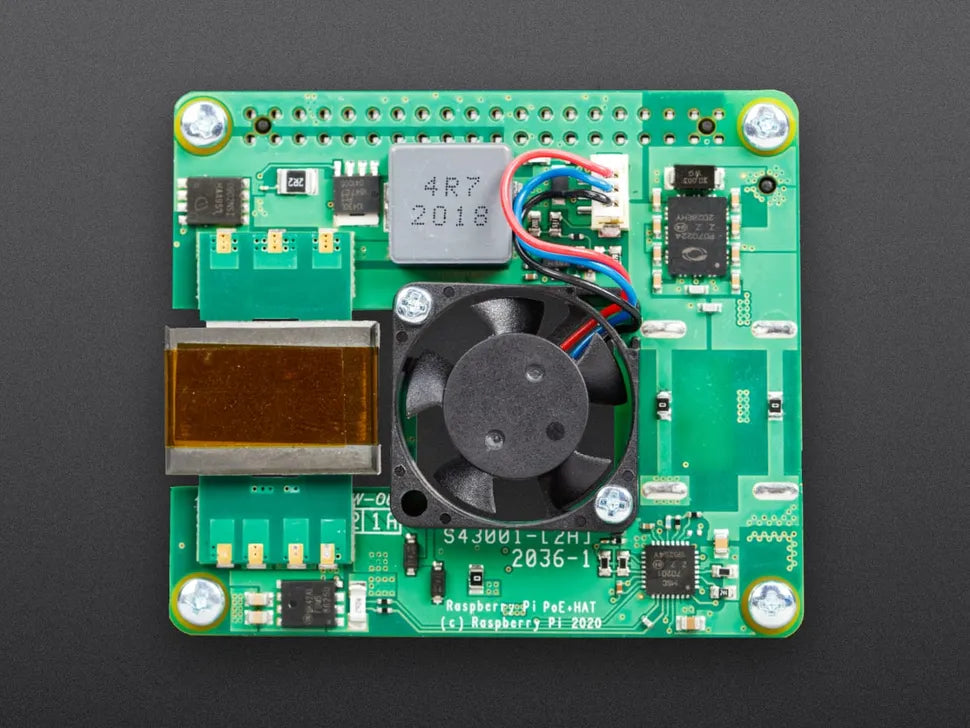

The Raspberry Pi PoE+ HAT is an add-on board that brings the convenience of Power over Ethernet (PoE) to your Raspberry Pi boards including Raspberry Pi 5, Raspberry Pi 4 and Raspberry Pi 3B+. This means you can power your Pi board directly through the same Ethernet cable that provides network connectivity.
What is PoE?
Power over Ethernet (PoE) is a technology that integrates electrical power with data transmission over a single Ethernet cable. This eliminates the need for separate power cords, making it particularly advantageous for devices positioned in hard-to-reach locations or for situations where numerous devices require power.
Benefits of using a PoE+ HAT
- Simplified Setup: No need for separate power adapters (PSU).
- Remote Locations: Easily transmit power through ethernet cables to remote locations to power your raspberry pi baords.
- Increased Reliability: Power and network connectivity are combined in a single cable, reducing potential points of failure.
Specification
Technical specification for Raspberry Pi PoE+ HAT
| Standard | IEEE 802.3at-2009 PoE |
| Input Voltage | 37 to 57 V DC, Class 4 device |
| Output Power | 5V DC @ 4A |
| Cooling | 25 mm x 25 mm brushless fan delivering 2.2 CFM for processor cooling |
| Features | Fully isolated SMPS Fan control |
| Operating Temperature | 0 °C to +50 °C |
Diagram
