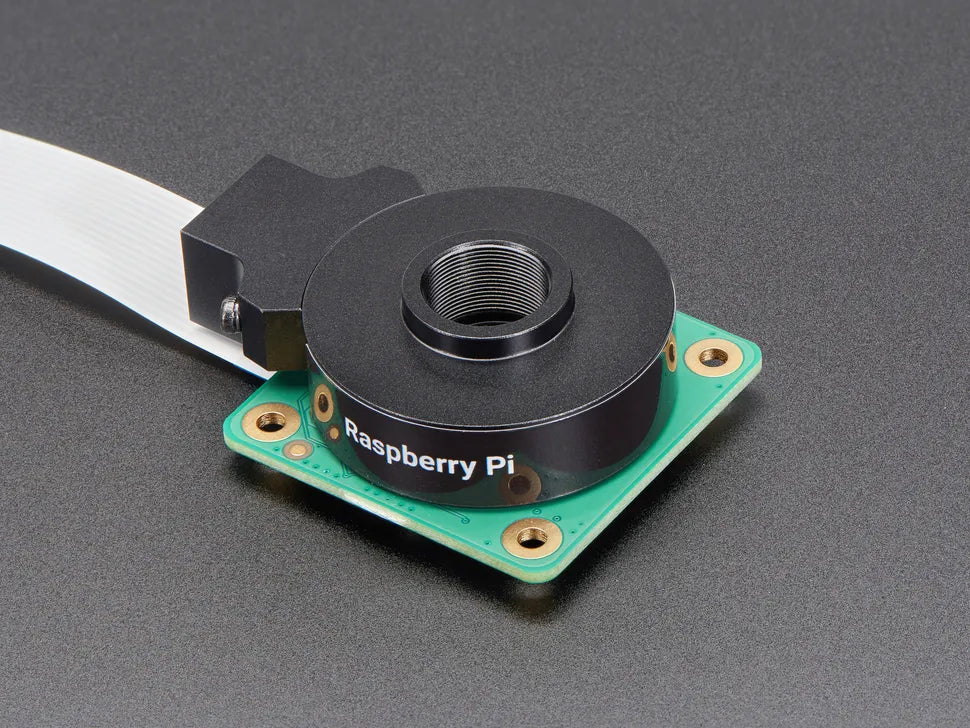

Raspberry Pi Global Shutter Camera

Overview

A specialised 1.6-megapixel camera that can capture rapid motion without introducing artefacts typical of rolling shutter cameras. Ideal for fast motion photography and machine vision applications.

Compatibility Note

All models of Raspberry Pi Zero require a specific Raspberry Pi Zero camera cable to connect to the Raspberry Pi High Quality Camera, as the standard cable supplied with the camera is not compatible with the smaller Raspberry Pi Zero camera connector

For more detailed information about the Raspberry Pi HQ Camera, including technical specifications and setup guides, visit the official Raspberry Pi documentation: Raspberry Pi HQ Camera Documentation.

Specifications

• Form factor: 38 × 38 × 19.8mm (29.5mm adapter and dust cap)
• Weight: 34g (41g with adapter and dust cap)
• Sensor: Sony IMX296LQR-C
• Resolution: 1.58 megapixels (colour)
• Sensor size: 6.3mm sensor diagonal
• Pixel size: 3.45μm × 3.45μm
• Output: RAW10
• Back focus length of lens: Adjustable (12.5–22.4mm)
• Lens standards: CS-Mount, C-Mount (C-CS adapter included)
• IR cut filter: Integrated
• Ribbon cable length: 150mm

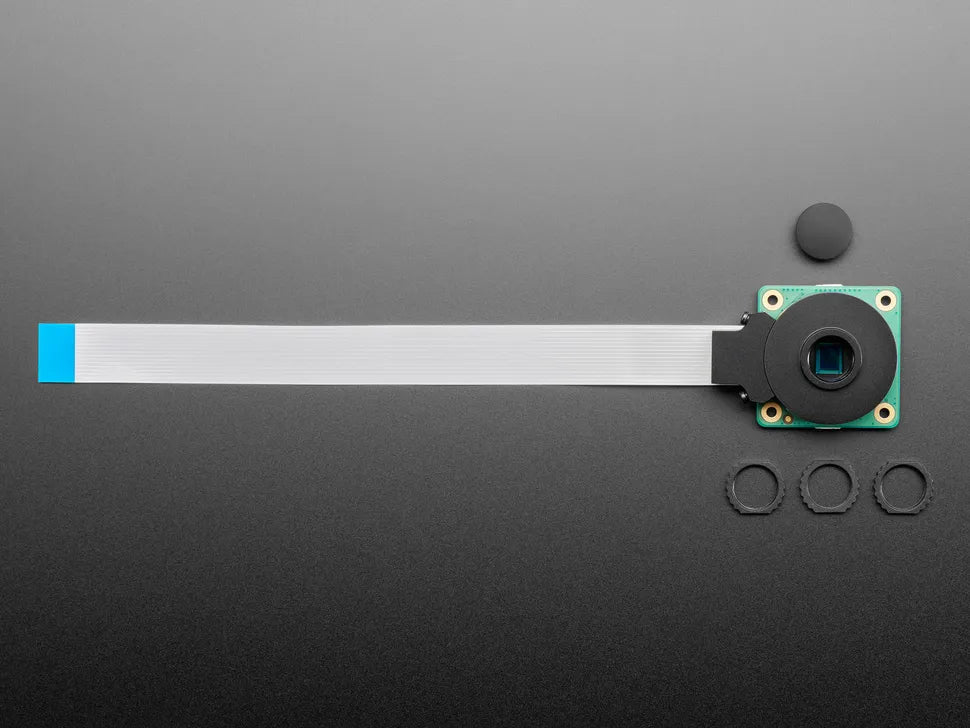

• Included accessories: C-CS mount adapter, screwdriver
• Tripod mount: 1/4”-20
