Overview

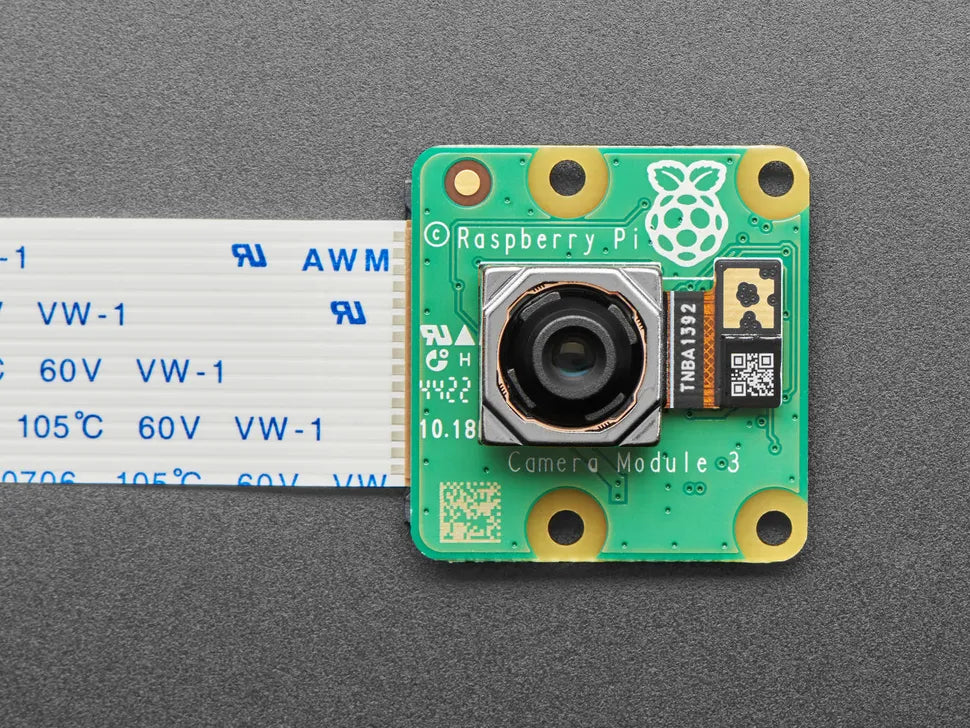

Raspberry Pi Camera Module 3 is a small, compact camera designed for the Raspberry Pi. It is equipped with a back-illuminated, stacked CMOS 12-megapixel IMX708 Sony sensor with a resolution of 4608 x 2592 pixels. It captures images and videos with HDR support and also has a motorised focus with Phase Detection Autofocus (PDAF) for rapid autofocus in various lighting conditions.
Available in standard and wide-angle options, both with or without an infrared cut filter, it excels at capturing full HD videos and still images with high signal-to-noise Ratio (SNR) and bulit-in 2D Dynamic Defect Pixel Correction (DPC) and Phase Detection Autofocus (PDAF) for rapid autofocus.
The Camera Module 3 has a slightly increased height due to improved optics while maintaining the same PCB size and mounting holes as its predecessor Camera Module 2 and it is fully compatible with all Raspberry Pi computers.
Spectral Sensitivity
Spectral sensitivity characteristics chart for Camera Module 3.
Features
- Back-illuminated, stacked CMOS 12-megapixel Sony IMX708 image sensor
- High signal-to-noise ratio (SNR)
- Built-in 2D Dynamic Defect Pixel Correction (DPC)
- Phase Detection Autofocus (PDAF) for rapid autofocus
- QBC Re-mosaic function
- CSI-2 serial data output
Specifications
Specification for Raspberry Pi Camera Module 3.
| Sensor | Sony IMX708 |
| Sensor Resolution | 4608 x 2592 pixels |
| Sensor Image Area | 6.45 x 3.63mm (7.4mm diagonal) |
| Pixel Size | 1.4 µm x 1.4 µm |
| Still Resolution | 11.9 Megapixels |
| Video Modes | 2304 × 1296p56 2304 × 1296p30 HDR 1536 × 864p120 |
| Output | RAW10 |
| IR Cut Filter |
Standard / Wide Yes NoIR / NoIR Wide No |
| Optical Size | 1/2.43" |
| Focus | Motorized |
| Depth of field |
Standard / NoIR Approx 10 cm to ∞ Wide / NoIR Wide Approx 5 cm to ∞ |
| Focal Length |
Standard / NoIR 4.74 mm Wide / NoIR Wide 2.75 mmm |
| Horizontal Field of View (FoV) |
Standard / NoIR 66 degrees Wide / NoIR Wide 102 degrees |
|
Vertical Field of View (FoV) |
Standard / NoIR 41 degrees Wide / NoIR Wide 67 degrees |
| Focal Ratio (F-Stop) |
Standard / NoIR F1.8 Wide / NoIR Wide F2.2 |
| Maximum Exposure Times | 112 seconds |
| Size |
Standard / NoIR Around 25 × 24 × 11.5 mm Wide / NoIR Wide Around 25 × 24 × 12.4 mm |
| Weight | 4g |
Mechanical Drawing
Mechanical drawing for Standard, Wide Raspberry Pi Camera Module 3.

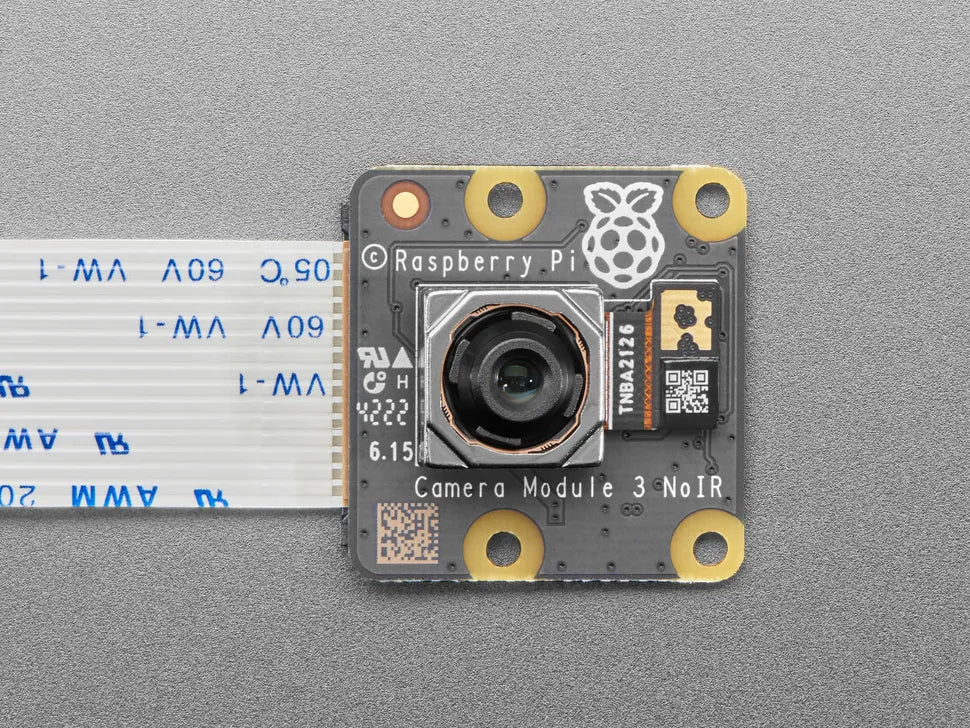

Camera Module 3 - Standard and NoIR

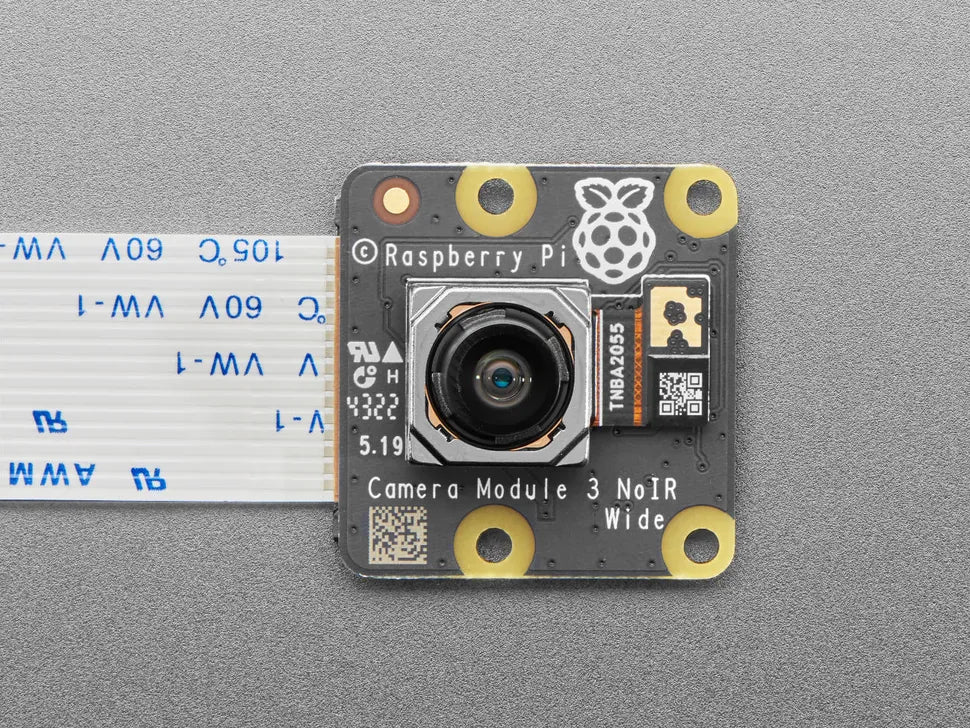

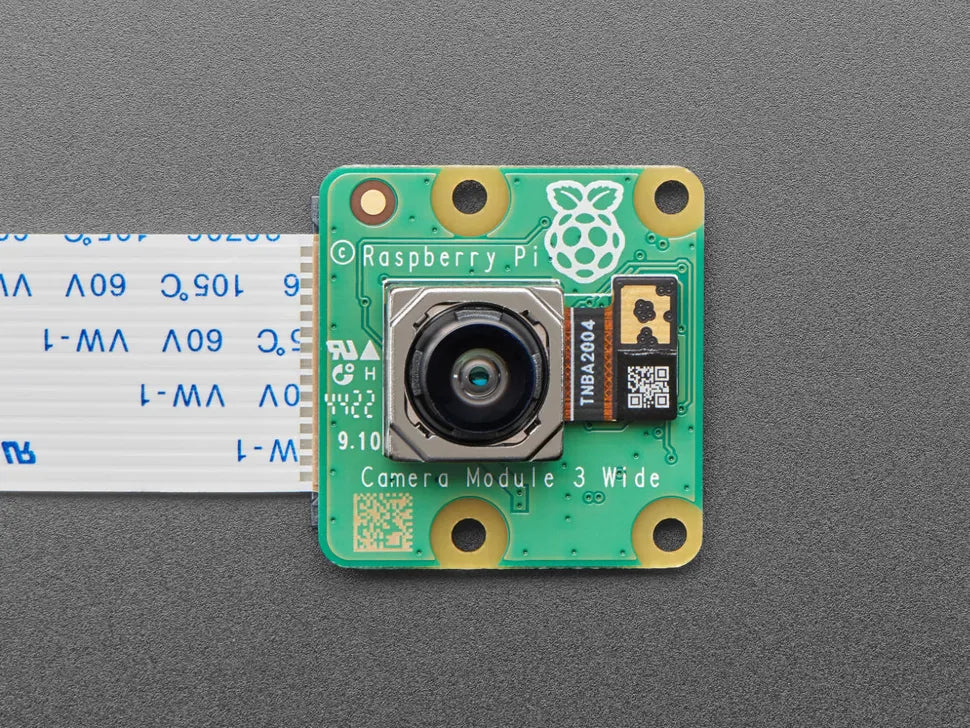

Camera Module 3 - Wide and NoIR Wide
