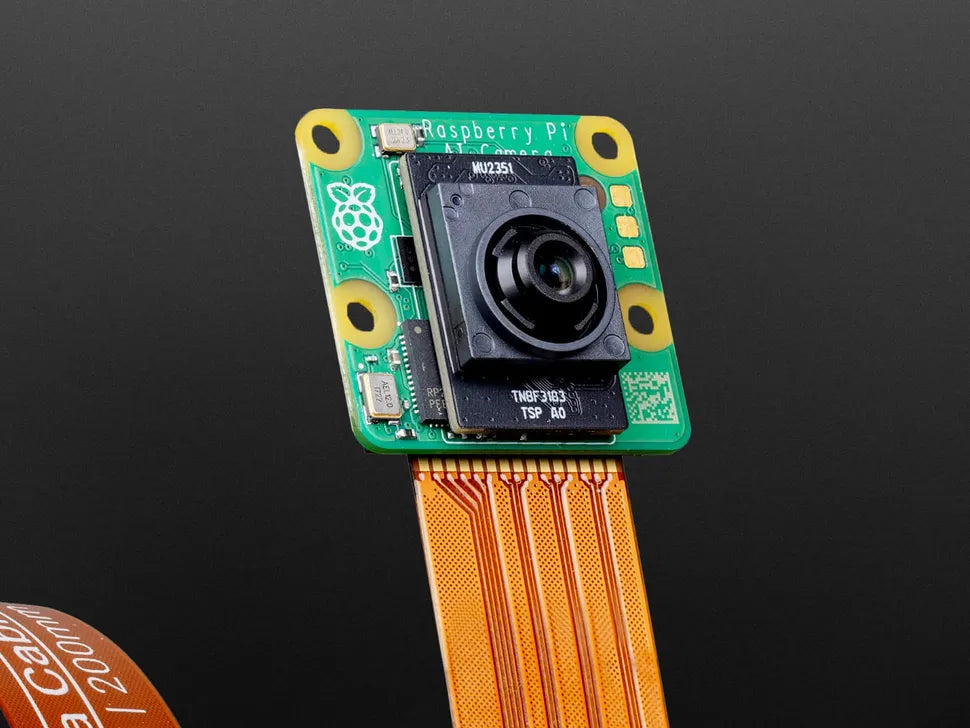

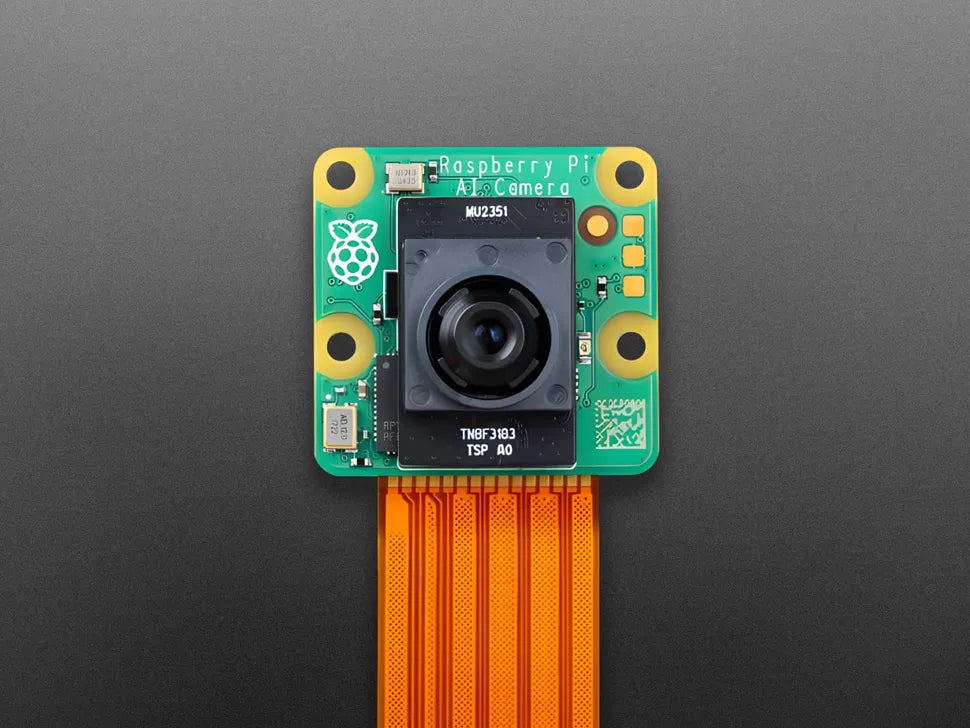

Raspberry Pi Ai Camera with 12.3 MP Sony IMX500 Vision Sensor

Name: Raspberry Pi Ai Camera with 12.3 MP Sony IMX500 Vision Sensor
Brand: Artlayer3D
SKU: AL3D0604
Price: 10013.80 INR
Availability: InStock

Raspberry Pi Ai Camera with 12.3 MP Sony IMX500 Vision Sensor

SKU:AL3D0604

11 in stock

Rs. 10,013.80

Sale Sold out

Taxes included. Shipping calculated at checkout.

Overview

The Raspberry Pi AI Camera, powered by a 12.3 MP Sony's IMX500 Intelligent Vision Sensor. This 12-megapixel camera module integrates on-device AI processing, eliminating the need for external accelerators.

By seamlessly capturing images and videos enriched with tensor metadata, the AI Camera frees up the host Raspberry Pi's processing power for other tasks. This innovative approach, supported by libraries like libcamera, Picamera2, and the rpicam-apps suite, empowers users of all levels to develop sophisticated AI vision applications.

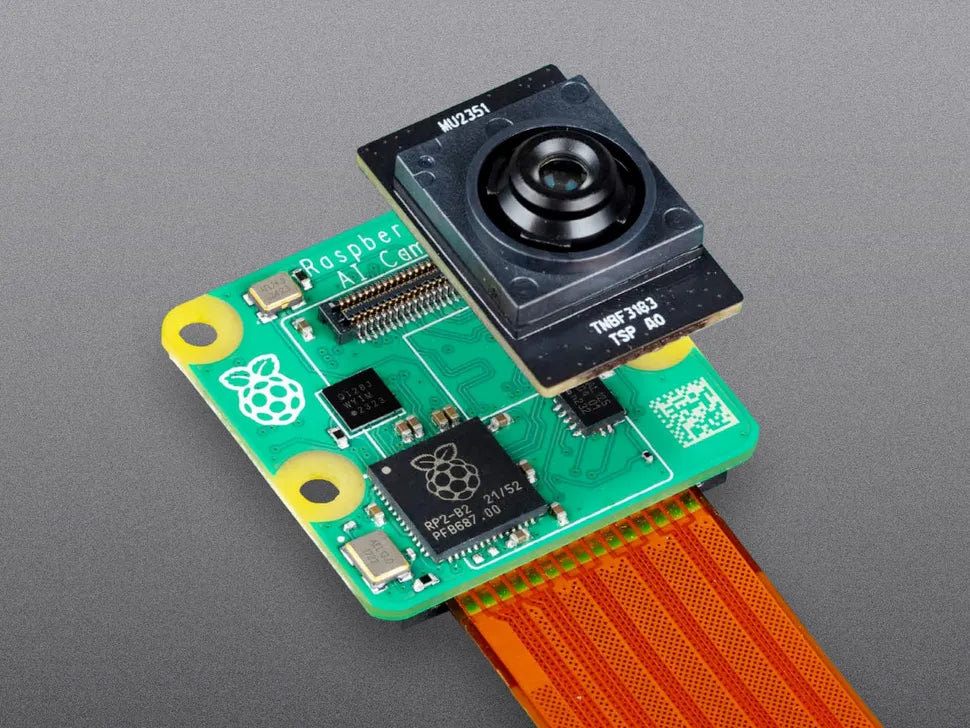

Compatible with all Raspberry Pi computers while maintaining the familiar form factor of Camera Module 3, it accommodates the larger IMX500 sensor and optical subassembly.

Specification

Technical specification for Raspberry Pi Ai Camera.

Sensor	Sony IMX500
Resolution	12.3 megapixels
Sensor size	7.857 mm (type 1/2.3)
Pixel size	1.55 μm × 1.55 μm
Horizontal/vertical	4056 × 3040 pixels
IR cut filter	Integrated
Autofocus system	Manual adjustable focus
Focus range	20 cm – ∞
Focal length	4.74 mm
Horizontal field of view	66 ±3 degrees
Vertical field of view	52.3 ±3 degrees
Focal ratio (F-stop)	F1.79
Infrared sensitive	No
Output	Image (Bayer RAW10), ISP output (YUV/RGB), ROI, metadata
Input tensor maximum size	640(H) × 640(V)
Input data type	'int8' or 'uint8'
Memory size	8388480 bytes for firmware, network weight file, and working memory
Framerate	2×2 binned: 2028×1520 10-bit 30fps Full resolution: 4056×3040 10-bit 10fps
Dimensions	25 × 24 × 11.9 mm
Ribbon cable length	200 mm
Cable connector	15 × 1 mm FPC or 22 × 0.5 mm FPC
Operating temperature	0°C to 50°C
