Raspberry Pi 5 Official Case with Fan
Raspberry Pi 5 Official Case with Fan
SKU:AL3D0538
200 in stock
Couldn't load pickup availability
Overview

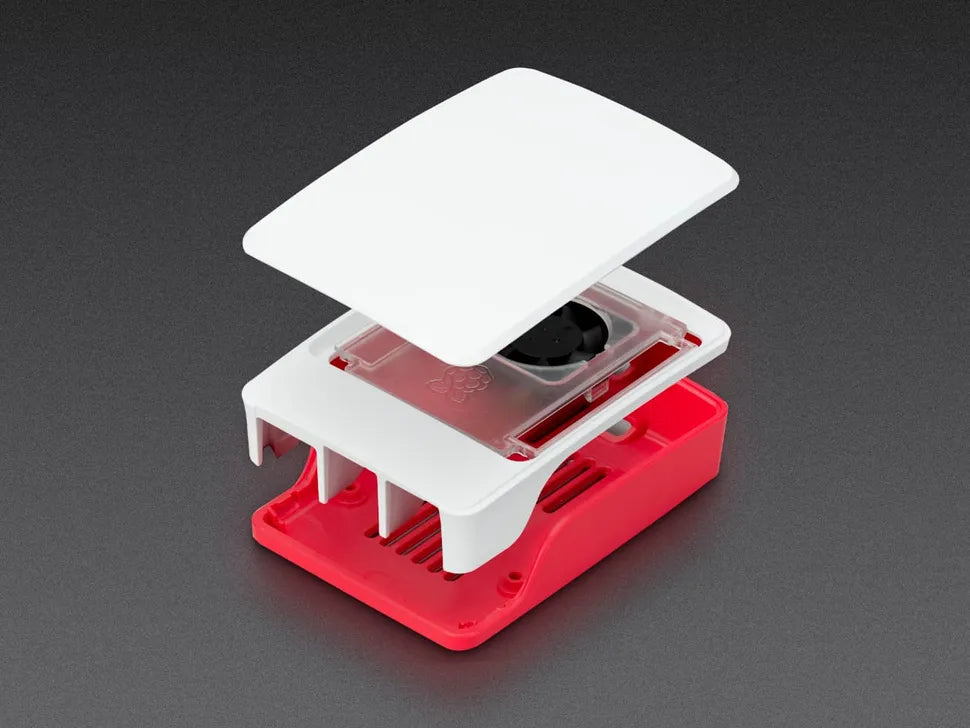

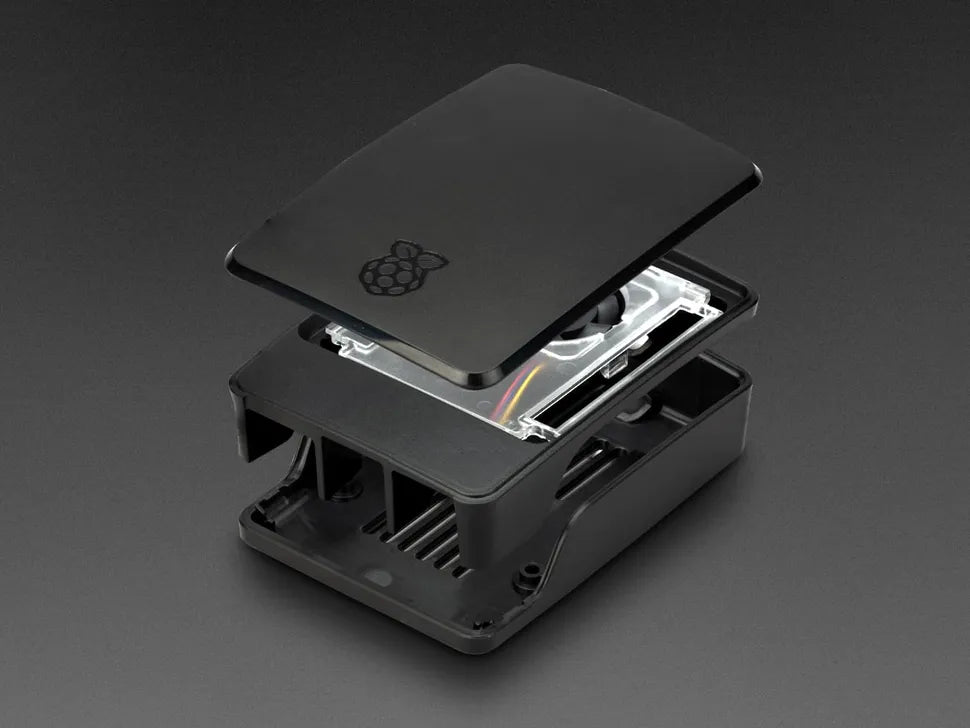

Introducing new Raspberry Pi 5 case! Raspberry Pi 4 case is given a serious upgrade to handle the higher power needs of the Raspberry Pi 5. What's the big deal? Well, we've added a nifty variable-speed fan that's like your Pi's personal temperature manager, making sure it runs smoothly and keeps cool.
And here's the fun part – this case is all about versatility. We've thrown in some handy mounting holes that let you effortlessly set up clusters with multiple Raspberry Pi 5 units. Whether you're looking to supercharge your Pi's performance or dive into cool multi-Pi projects, this case has got you covered. It's innovation made easy, just for you!
If you want to add Active Cooler, you can replace it with integrated Fan.
| Fan Speed | Temperature |
|---|---|
| 0% | less than 50 °C |
| 30% Low Speed |
50 °C |
| 50% Medium Speed |
60 °C |
| 70% High Speed |
67.5 °C |
| 100% Full Speed |
75 °C |
Specification
Specification for Raspberry Pi 5 case.
| Input Voltage | 5V DC |
|---|---|
| Fan Speed Control | PWM Pulse width modulation control with tachometer |
| Air Flow | 2.79 CFM |
| Maximum Fan Speed | 8000 RPM ± 15% |
| Case Material | ABS (base, frame, lid) PC (fan assembly) |
Pin Configuration
Pin configuration for Pi 5 case fan.
| No. | Pins | Color |
|---|---|---|
| 1 | 5V | Red |
| 2 | PWM | Blue |
| 3 | GND | Black |
| 4 | Tach | Yellow |
Physical Dimensions
Physical dimensions for Raspberry Pi 5 case.
