Overview

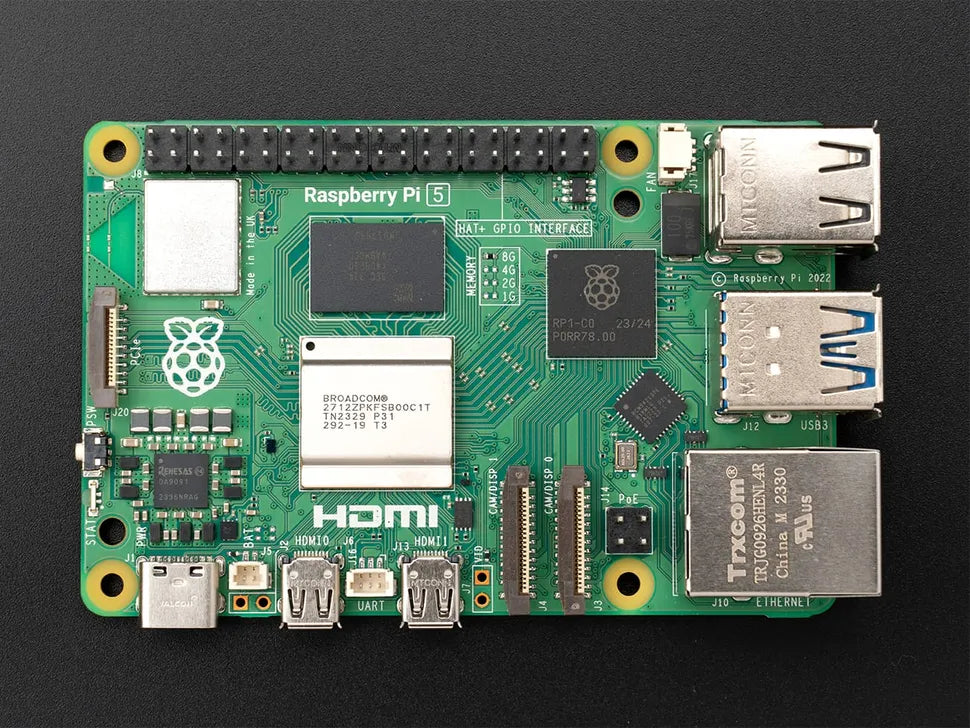

The Raspberry Pi 5 represents a major leap in performance and capability, making it the most advanced Raspberry Pi ever released. A 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz. This iteration delivers a 2 to 3 times increase in CPU performance compared to its predecessor, Raspberry Pi 4. With its 800MHz VideoCore VII GPU, the Raspberry Pi 5 gurantees an improvment in graphics performance, supporting dual 4Kp60 display outputs over HDMI and advanced camera functionalities through a rearchitected Image Signal Processor.
Designed for both consumers seeking a seamless desktop experience and industrial users exploring new applications, the Raspberry Pi 5 marks a full-size evolution with in-house built silicon, the RP1, enhancing I/O capabilities and peripheral performance significantly.
Features
Some of the primary changes and features of Raspberry P 5i.

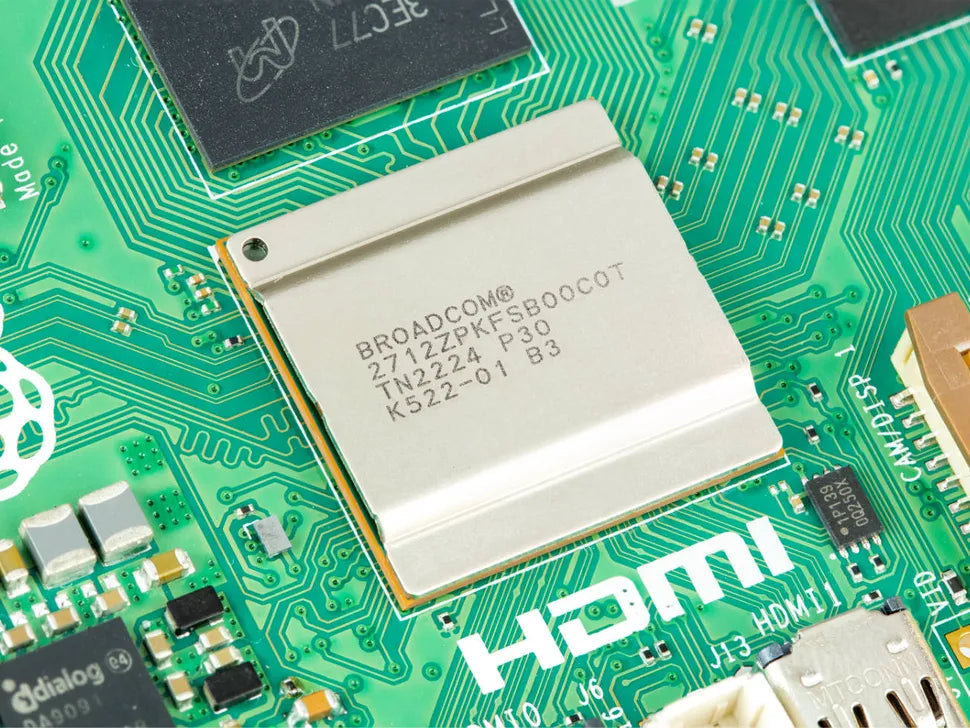

1. 64-bit Quad-Core Arm Cortex-A76 Processor

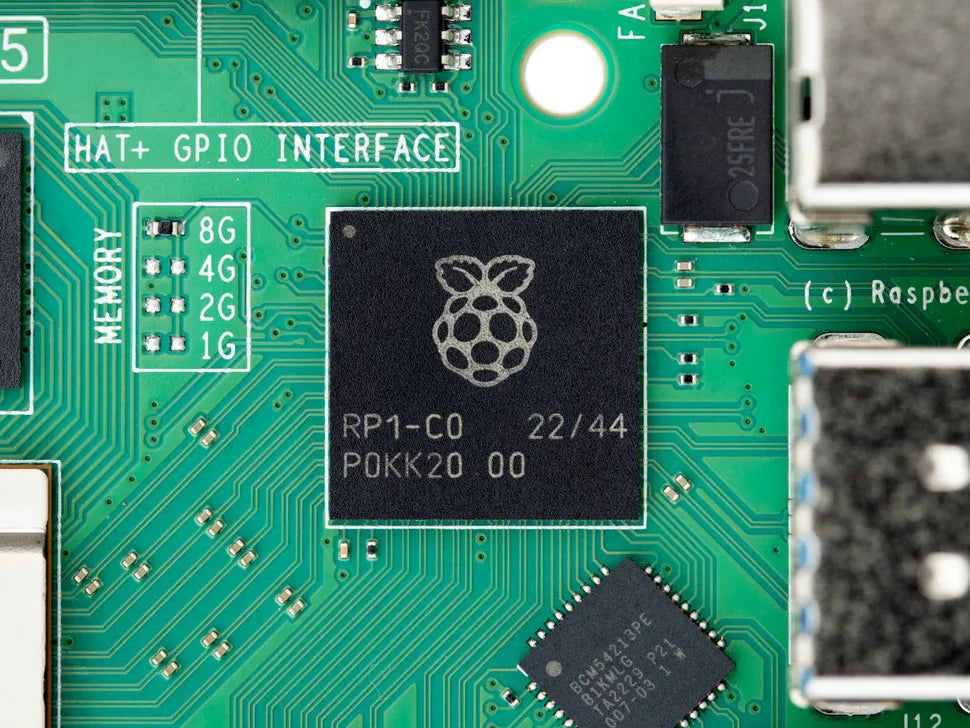

2. RP-1 Chip
Applications
- IoT gateways and edge computing systems
- Robotics and automation projects
- AI and machine learning prototypes
- Industrial monitoring and control systems
- Home automation and smart devices
- Embedded product development
- Educational and research projects
Specifications
Technical details for Raspberry Pi 5 Computer.
| Processor |
Quad Arm Cortex-A76 @ 2.4GHz Cryptographic Extension support (AES on hardware) 512KB per-core L2 caches 2MB L3 cache |
|---|---|
| RAM | 1GB, 2GB, 4GB, 8GB or 16GB LPDDR4X-4267 SDRAM |
| Display | Dual 4kp60 HDMI display output with HDR support |
| Video | 4kp60 HEVC decoder VideoCore VII graphics, with OpenGL-ES 3.1, Vulkan 1.2 Raspberry Pi Image Sensor Processor (ISP) |

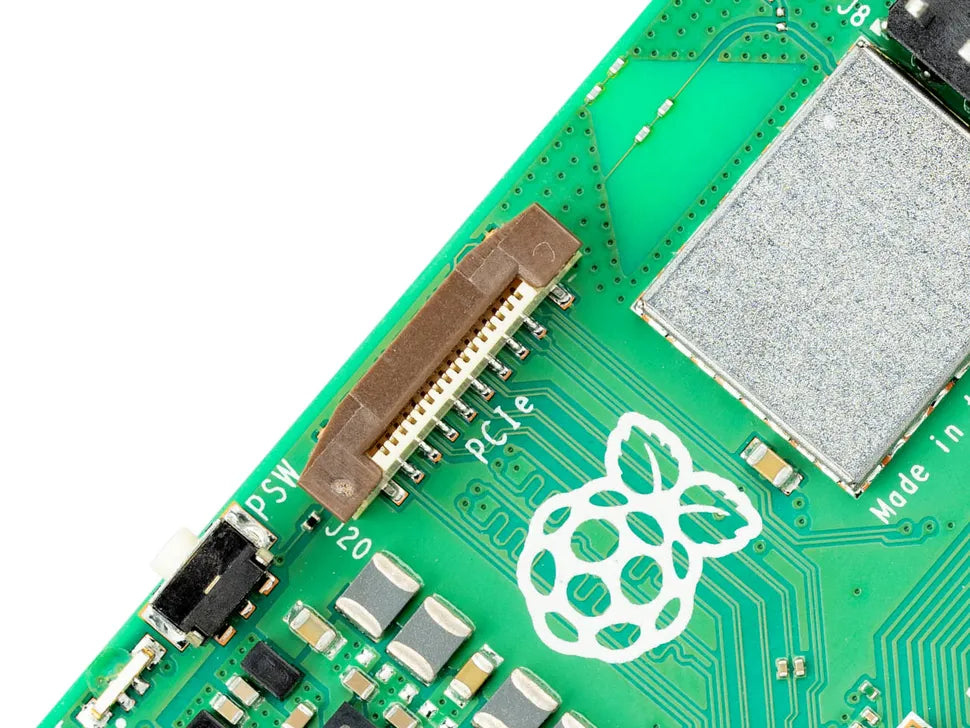

| Connectivity | PCIe (1× 2.0 port, additional HAT required) 802.11ac dual-band WiFi Bluetooth 5.0 (with BLE support) Gigabit Ethernet |
| USB | 2× USB 3.0 (Simultaneous full throughput) 2× USB 2.0 |
| CSI/DSI | Dual 4-lane MIPI CSI/DSI transceivers 2× Display 2x Camera 1x Display & 1x Camera (Any one of the above combinations) |
| GPIO Header | Raspberry Pi 40-pin GPIO header |

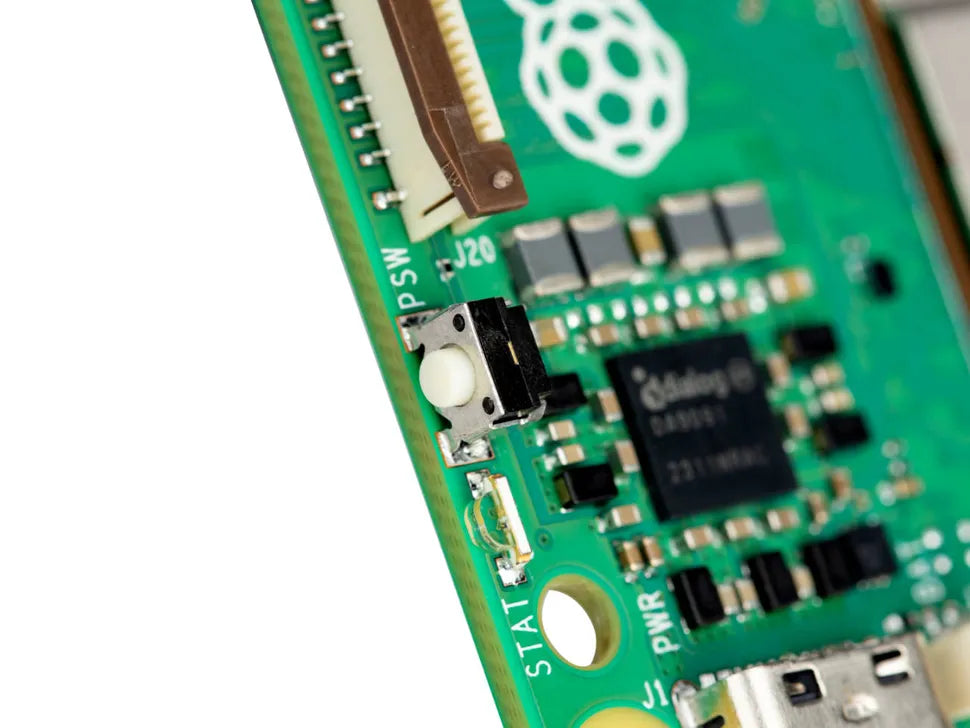

| Other Features | Fan Connector UART Connector RTC (Real Time Clock) RTC Battery Connector Power Button |
| Power Supply | 5V/5A DC (Recommended) 5V/3A DC (limits peripherals to 600mA) Needs USB C type power supply. |
| Dimension | 85 x 56 mm |
Power Supply
We recommend using a official Raspberry Pi 5 27W USB-C power supply which provides 5A current at +5.1V output.
The power supply comes with a USB-PD protocol which enables the control of higher voltages and currents through software, but necessitates the presence of a specific Power Management Integrated Circuit (PMIC). This component is exclusively found in the Raspberry Pi 5. To utilize these power supplies effectively, it is essential to use USB-PD compatible cables thus the official Raspberry Pi 5 power supply comes with a cable attached.
Attention! Using other USB-PD-capable phone chargers, despite advertising power outputs greater than 15W, typically attain this by elevating the voltage rather than supplying a higher current at +5V. Should you use a power supply incapable of delivering 5A at +5V upon initial boot, the operating system will issue a warning, indicating that the current available for peripherals is limited to 600mA.
Please be aware that Raspberry Pi5 boards do not officially support Windows OS. For operating system compatibility, please refer to the official Raspberry Pi document. Returns will not be accepted solely on the basis of Windows OS not being supported.
Mechanical Drawing
Pinout
| 3V3 Power | 1 | 2 | 5V Power |
| GPIO 2 (SDA) | 3 | 4 | 5V Power |
| GPIO 3 (SCL) | 5 | 6 | Ground |
| GPIO 4 | 7 | 8 | GPIO 14 (TXD) |
| Ground | 9 | 10 | GPIO 15 (RXD) |
| GPIO 17 | 11 | 12 | GPIO 18 (PCM_CLK) |
| GPIO 27 | 13 | 14 | Ground |
| GPIO 22 | 15 | 16 | GPIO 23 |
| 3V3 Power | 17 | 18 | GPIO 24 |
| GPIO 10 (MOSI) | 19 | 20 | Ground |
| GPIO 9 (MISO) | 21 | 22 | GPIO 25 |
| GPIO 11 (SCLK) | 23 | 24 | GPIO 8 (CE0) |
| Ground | 25 | 26 | GPIO 7 (CE1) |
| GPIO 0 (ID_SD) | 27 | 28 | GPIO 1 (ID_SC) |
| GPIO 5 | 29 | 30 | Ground |
| GPIO 6 | 31 | 32 | GPIO 12 (PWM0) |
| GPIO 13 (PWM1) | 33 | 34 | Ground |
| GPIO 19 (PCM_FS) | 35 | 36 | GPIO 16 |
| GPIO 26 | 37 | 38 | GPIO 20 (PCM_DIN) |
| Ground | 39 | 40 | GPIO 21 (PCM_DOUT) |
