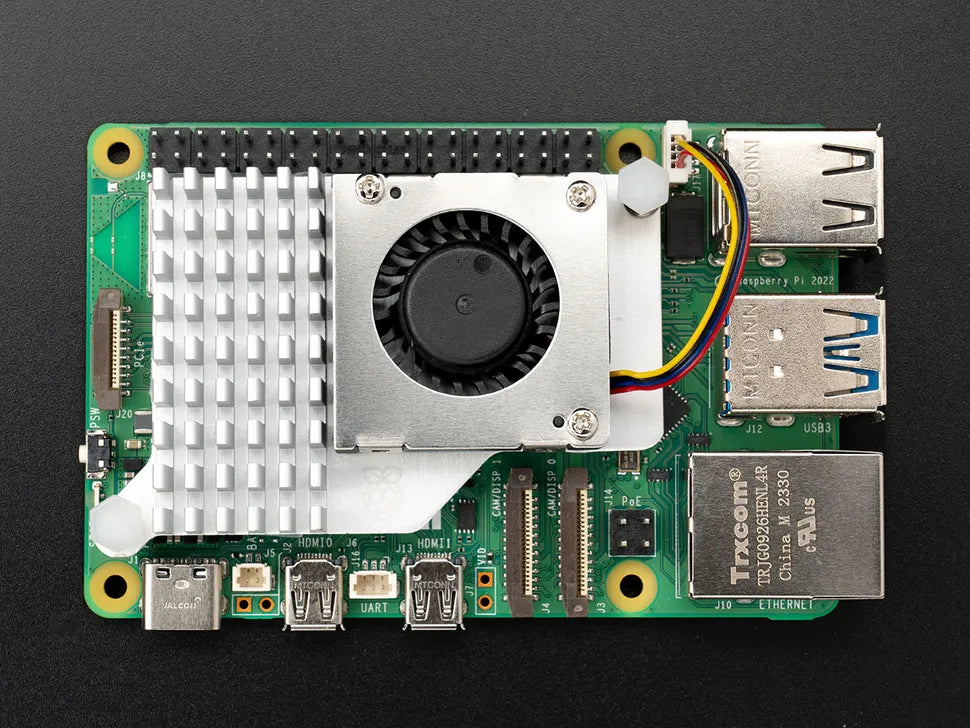

Official Raspberry Pi 5 Active Cooler
Official Raspberry Pi 5 Active Cooler
SKU:AL3D0615
200 in stock
Couldn't load pickup availability
Overview
Keep your Raspberry Pi 5 cool and running at optimum temperature with this dedicated active cooler.

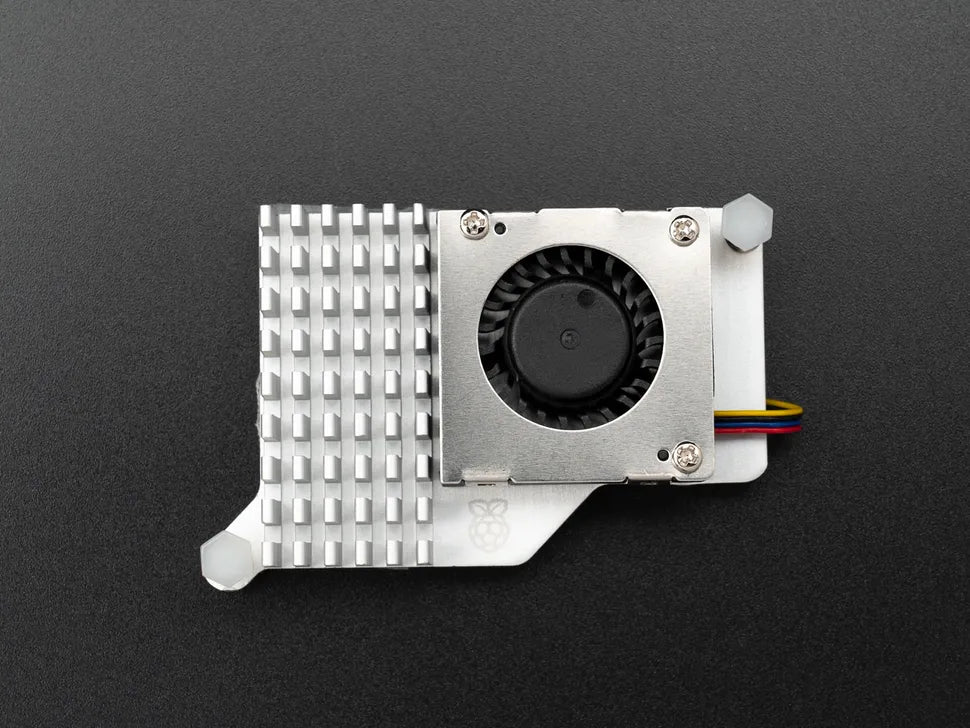

This active cooler is specifically designed for the Raspberry Pi 5 board, this clip-on cooler is nothing but a sturdy aluminium heat sink with a PWM controlled blower fan with a tachometer. The speed of the fan is controlled using pulse width modulation by the Pi 5 firmware w.r.t the temperature of the board.
Even under intense workloads, it efficiently dissipates heat to maintain optimal performance.
Fan Speed
Active cooler fan speed w.r.t to Pi 5 temperature.
| Fan Speed | Temperature |
|---|---|
| 0% | less than 50 °C |
| 30% Low Speed |
50 °C |
| 50% Medium Speed |
60 °C |
| 70% High Speed |
67.5 °C |
| 100% Full Speed |
75 °C |
Specification
Specification for Raspberry Pi Active Cooler.
| Input Voltage | 5V DC |
|---|---|
| Fan Speed Control | PWM Pulse width modulation control with tachometer |
| Air Flow | 1.09 CFM |
| Maximum Fan Speed | 8000 RPM ± 15% |
| Product Material | Anodised Aluminium |
Pin Configuration
Pin configuration for Active Cooler.
| No. | Pins | Color |
|---|---|---|
| 1 | 5V | Red |
| 2 | PWM | Blue |
| 3 | GND | Black |
| 4 | Tach | Yellow |
Mechanical Diagram
Mechanical drawing for Active Cooler.
