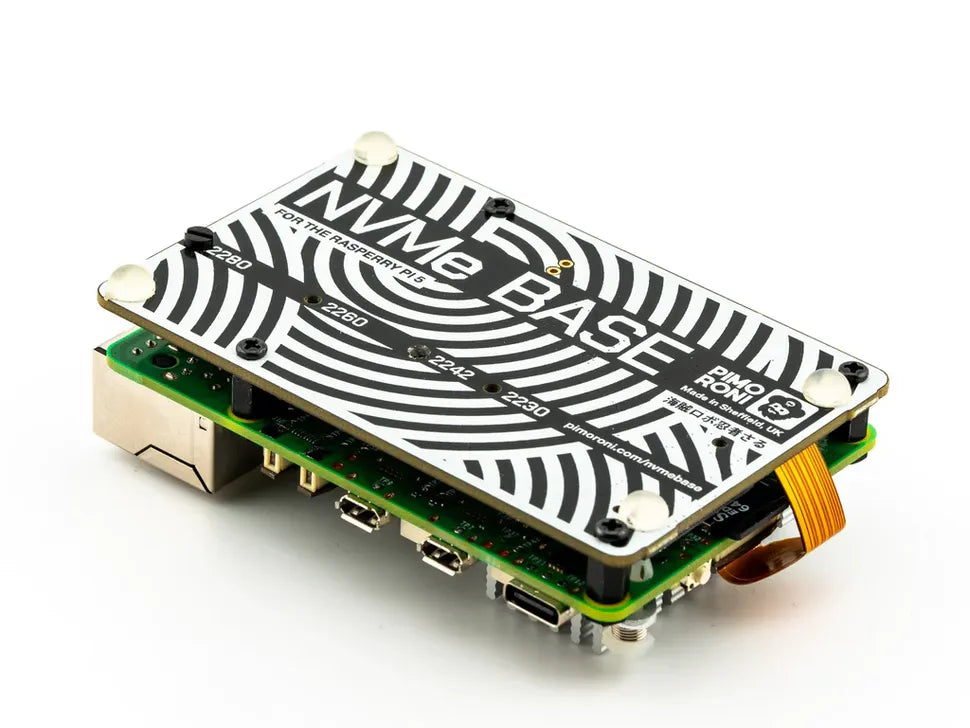

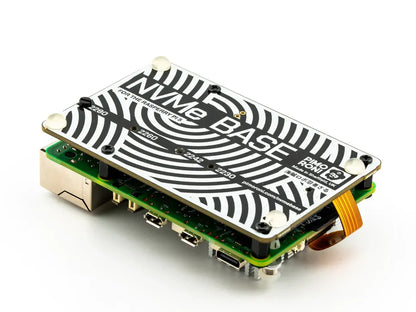

NVMe Base PCIe Extension Hat for Raspberry Pi 5

Overview

The NVMe Base for Raspberry Pi 5 is an innovative PCIe extension board designed by Pimoroni to enhance the storage capabilities of the latest Raspberry Pi model. By accommodating an M-key NVMe SSD, ranging in size from 2230 to 2280, it significantly expands the storage capacity and speed, transforming the Raspberry Pi 5 into a robust platform suitable for various applications. This extension board is ideal for users looking to turn their Raspberry Pi into a high-performance server, media center, or any project that benefits from fast and large storage solutions. Adhering to the new "PIP" design guidelines by Raspberry Pi, the NVMe Base ensures ease of use and long-term support, promising a seamless integration with Raspberry Pi OS updates.

Specification

• Compatible SSD Sizes: M-key NVMe SSD (2230 to 2280)
• Design Compliance: Follows "PIP" design guidelines by Raspberry Pi

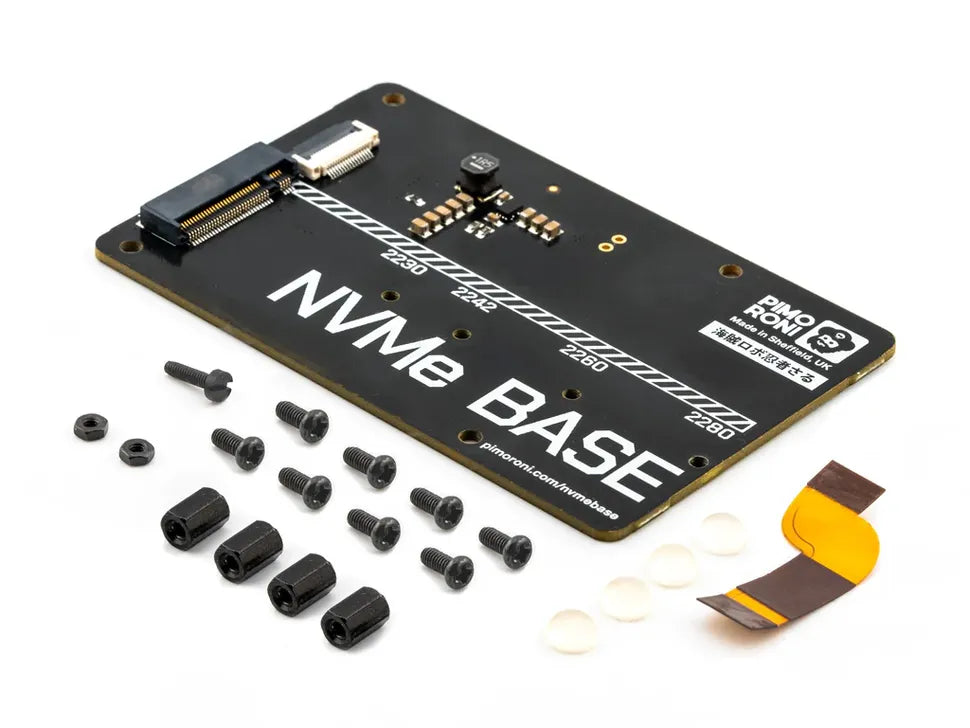

• Included in the Base Kit:
  • NVMe Base PCB with M.2 Slot (M-Key)
  • 'PCIe Pipe' Flat Flex Cable
  • 4x Rubber feet for stability
  • M2 bolt and 2x nuts for SSD mounting
  • 4x 7mm M2.5 standoffs for base mounting
  • 8x short M2.5 bolts for base mounting
  • 4x long M2.5 bolts for 'pass-thru' mounting with a HAT
• Compatibility: Tested with various M.2 NVMe drives (AData, Crucial, Kingston, Samsung, etc.)
• Firmware Requirement: Raspberry Pi OS with firmware updated to 2023-12-06 or newer
• Additional Features: Supports rapid IOPS for high-demand tasks, suitable for extensive data applications, file servers, media centers, etc.
