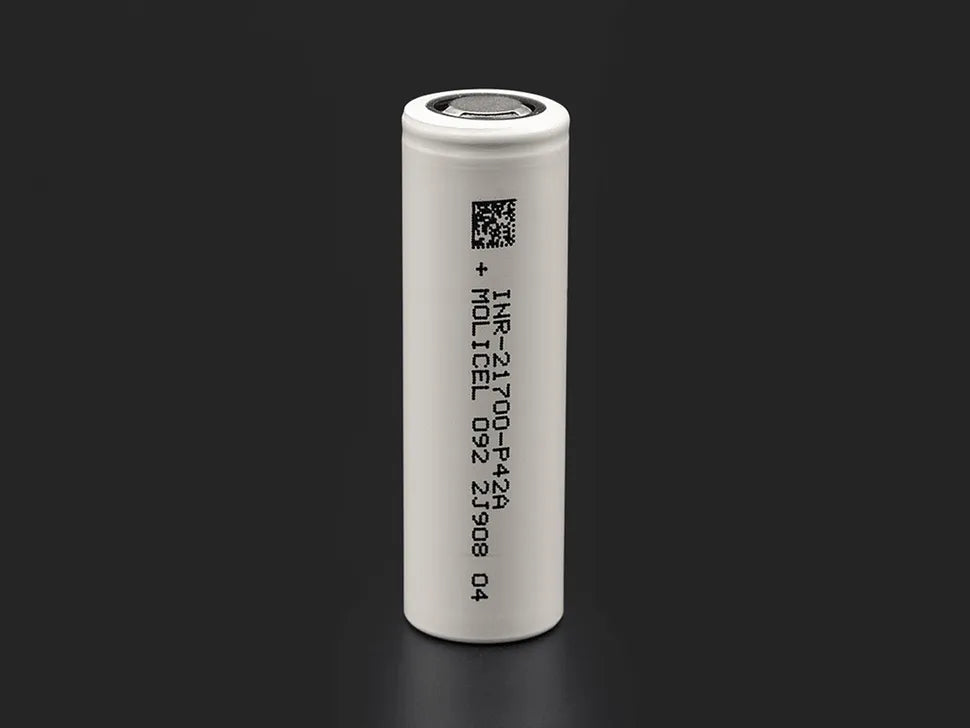

Molicel INR21700-P42A 3.6V 4200mAh Lithium-Ion Battery
Molicel INR21700-P42A 3.6V 4200mAh Lithium-Ion Battery
SKU:AL3D0261
In stock
Couldn't load pickup availability
Overview
This is a Molicel INR-21700-P424 rechargeable cylindrical high-performance lithium-ion battery with a rated typical capacity of 4200 mAh (4.2 Ah), a nomial voltage of 3.6V and a whooping! discharge current of 45 A. This allows the battery to deliver high bursts of power, ideal for demanding electronics like power tools or high-performance drones.
The Molicel INR-12700-P42A remarkable capacity and ability to provide high discharge current makes it a long-lasting power house to keep up with the demands.
Applications
The Molicel INR-21700-P42A is suitable for various applications where high power and long runtimes are needed.
- Electric vehicles (e-bikes, scooters)
- Power tools (drills, saws)
- Radio-controlled models (drones, airplanes)
- High-drain electronics
Do's & Dont's
ALWAYS USE a lithium-ion chargers which provide constant votlage and constant current.
DO NOT use NiMH/NiCad/lead-acid charger.
DO NOT overcharge or over-discharge.
DO NOT puncture, poke or cut open the Lithium Ion battery, it may result in spontaneous fire or explosion.
DO NOT store lithium-ion batteries with other objects, metal objects or sharp objects.
ALWAYS USE dedicated lithium-ion storage containers / case.
DO NOT short circuit
DO NOT solder, spot welld only.
DO NOT immerse in water or liquids.
DO NOT use with e-cigarates, vapes or similar device.
Specification
Technical specification for Molicel INR21700-P42A lithium-ion battery.
| Capacity | 4200 mAh (Typical) 15.5 Wh 4000 mAh (Minimum) 14.7 Wh |
| Cell Voltage | 3.6 V (Nominal) 4.2 V (Charge) 2.5 V (Discharge) |
|
Charge Current |
4.2 A (Standard) |
| Charge Time | 1.5 hr (Standard) |
| Discharge Current | 45 A |
| Temperature | 0 ℃ to 60 ℃ (Charge) -40 ℃ to 60 ℃ (Discharge) |
| Energy Density | 615 Wh/l (Volumetric) 230 Wh/kg (Gravimetric) |
| Typical Impedance | AC (1 KHz) 10 mΩ DC (10A/1s) 16 mΩ |
Dimensions
Dimensions and physical characteristics for Molicel INR21700-P42A lithium-ion battery.
| Shape | Cylindrical |
| Can | Steel |
| Positive Terminal | Flat Top |
|
D (Diameter) |
21.7 mm (Max) |
| H (Height) | 70.2 mm (Max) |
| Weight | 70 g (Max) |
Charge Rate
Charge rate for INR21700-P42A
Discharge Rate
Discharge rate for INR21700-P42A
Discharge Temperature Rate
Discharge temperature rate for INR21700-P42A
Cycle Rate
Cycle rate for INR21700
