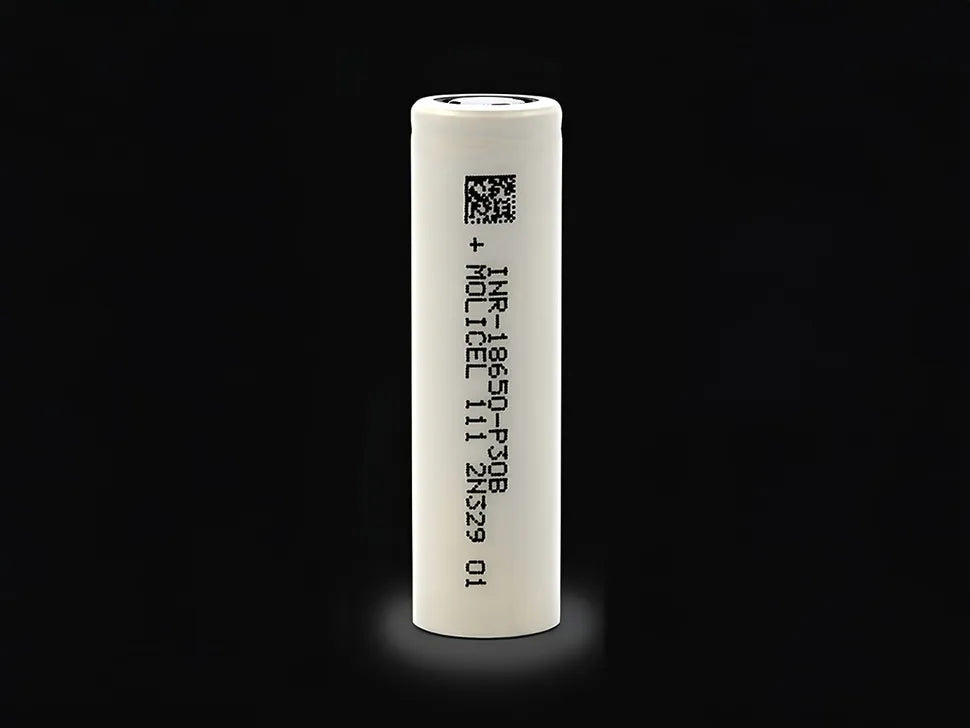

Molicel INR18650-P30B 3.6V 3000mAh Lithium-Ion Battery

Name: Molicel INR18650-P30B 3.6V 3000mAh Lithium-Ion Battery
Brand: Artlayer3D
SKU: AL3D0260
Price: 778.19 INR
Availability: InStock

Molicel INR18650-P30B 3.6V 3000mAh Lithium-Ion Battery

SKU:AL3D0260

In stock

Rs. 778.19

Sale Sold out

Taxes included. Shipping calculated at checkout.

420Overview

The MOLICEL® INR-18650-P30B is a high-performance lithium-ion rechargeable battery designed for demanding applications. It offers a typical capacity of 3000 mAh (10.8 Wh) and a minimum capacity of 2900 mAh (10.4 Wh), ensuring reliable energy storage. The battery operates at a nominal voltage of 3.6V, with a maximum charge voltage of 4.2V and a minimum discharge voltage of 2.5V. It supports a standard charge current of 3A, while the maximum charge current is 9A, with a temperature cut-off at 60°C. For discharge, the battery can continuously provide 30A of current, with an 80°C cut-off for safety.

The charge time under standard conditions is 1.5 hours, making it a fast-charging option. It operates efficiently within a temperature range of 0°C to 60°C during charging and -40°C to 60°C during discharge. The energy density is rated at 631 Wh/l volumetric and 234 Wh/kg gravimetric, making it a highly efficient power source. The battery has low impedance, with 8 mΩ at 30% state-of-charge (AC measurement) and 17 mΩ at 50% state-of-charge (DC measurement).

Physically, the INR-18650-P30B is a cylindrical cell encased in steel, ensuring durability. It has a maximum diameter of 18.6 mm, a maximum height of 65.2 mm, and weighs up to 47g.

It is important to note that this battery is not designed for use in vape or e-cigarette devices.

Do's & Dont's

ALWAYS USE a lithium-ion chargers which provide constant votlage and constant current.

DO NOT use NiMH/NiCad/lead-acid charger.

DO NOT overcharge or over-discharge.

DO NOT puncture, poke or cut open the Lithium Ion battery, it may result in spontaneous fire or explosion.

DO NOT store lithium-ion batteries with other objects, metal objects or sharp objects.

ALWAYS USE dedicated lithium-ion storage containers / case.

DO NOT short circuit

DO NOT solder, spot welld only.

DO NOT immerse in water or liquids.

DO NOT use with e-cigarates, vapes or similar device.

Specification

Technical specification for Molicel INR18650-P30B lithium-ion battery.

Capacity	3000 mAh (Typical) 10.8 Wh 2900 (Minimum) 10.4 Wh
Cell Voltage	3.6V (Nominal) 4.2V (Charge) 2.5V (Discharge)
Charge Current	3A (Standard) 9A (Maximum)
Charge Time	1.5 hr (Standard)
Discharge Current	30A (Continuous) @ 80℃ Cut-off
Temperature	0℃ to 60℃ (Charge) -40℃ to 60℃ (Discharge)
Energy Density	631 Wh/l (Volumetric) 234 Wh/kg (Gravimetric)
Typical Impedance	8 mΩ (AC 30% SOC) 17 mΩ (DC 50% SOC)
