Molicel INR18650-M35A 3.6V 3500mAh Lithium-Ion Battery
Molicel INR18650-M35A 3.6V 3500mAh Lithium-Ion Battery
SKU:AL3D0259
In stock
Couldn't load pickup availability
Overview

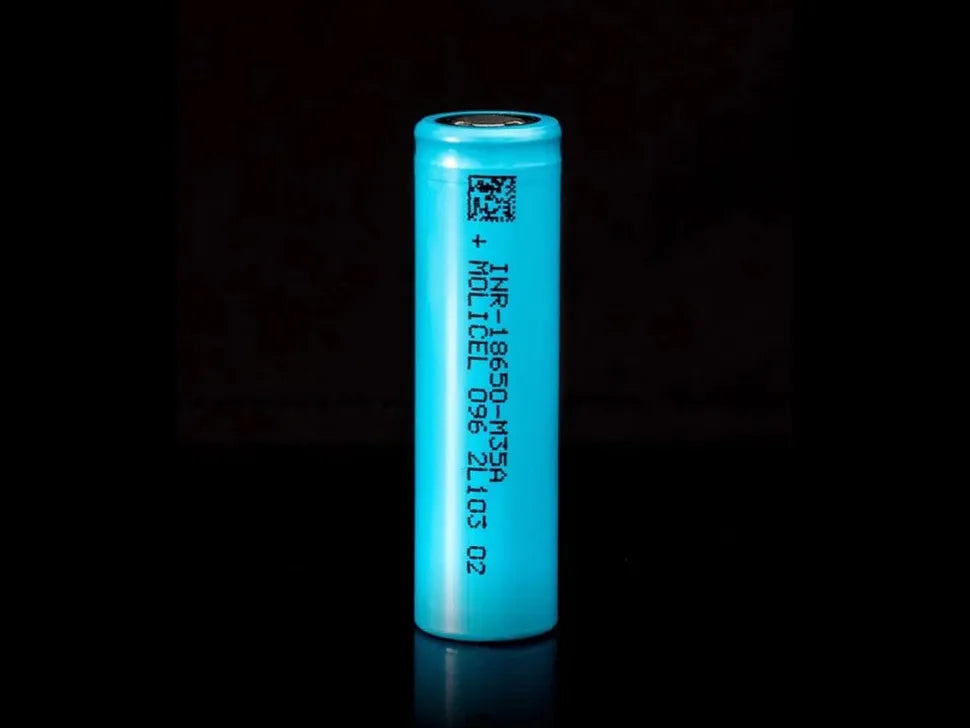

This is a Molicel INR-18650-M35A rechargeable cylindrical high-performance lithium-ion battery with a rated typical capacity of 3500 mAh (3.5 Ah), a nomial voltage of 3.6V and a discharge current of 10 A. This translates to tons of power in a relatively small package, making it ideal for devices that demand a lot of juice.
Applications
The Molicel INR-18650-M35A is suitable for various applications where high power and compact size are needed.
- Electric vehicles
- Power tools
- Energy storage systems
- High-drain electronics
Do's & Dont's
ALWAYS USE a lithium-ion chargers which provide constant votlage and constant current.
DO NOT use NiMH/NiCad/lead-acid charger.
DO NOT overcharge or over-discharge.
DO NOT puncture, poke or cut open the Lithium Ion battery, it may result in spontaneous fire or explosion.
DO NOT store lithium-ion batteries with other objects, metal objects or sharp objects.
ALWAYS USE dedicated lithium-ion storage containers / case.
DO NOT short circuit
DO NOT solder, spot welld only.
DO NOT immerse in water or liquids.
DO NOT use with e-cigarates, vapes or similar device.
Specification
Technical specification for Molicel INR18650-M35A lithium-ion battery.
| Capacity | 3500 mAh (Typical) 12.5 Wh 3350mAh (Minimum) 11.9 Wh |
| Cell Voltage | 3.6V (Nominal) 4.2V (Charge) 2.5V (Discharge) |
|
Charge Current |
1.7A (Standard) 1.7A (Maximum) |
| Charge Time | 2.5 hr (Standard) |
| Discharge Current | 10A (Continuous) @ 80℃ Cut-off |
| Temperature | 0℃ to 60℃ (Charge) -40℃ to 60℃ (Discharge) |
| Energy Density | 700 Wh/l (Volumetric) 250 Wh/kg (Gravimetric) |
Dimensions
Dimensions and physical characteristics for Molicel INR18650-M35A lithium-ion battery.
| Shape | Cylindrical |
| Can | Steel |
| Positive Terminal | Flat Top |
|
D (Diameter) |
18.6 mm (Max) |
| H (Height) | 65.2 mm (Max) |
| Weight | 48 g (Max) |
Charge Rate
Charge rate for INR18650-M35A
Discharge Rate
Discharge rate for INR18650-M35A
Discharge Temperature Rate
Discharge temperature rate for INR18650-M35A
Cycle Rate
Cycle rate for INR18650-M35A
