Electroluminescent EL Panel with 2xAA Pocket Inverter Box

Electroluminescent EL Panel with 2xAA Pocket Inverter Box

SKU:AL3D0095

Low stock: 5 left

Regular price Rs. 750.50
Regular price Sale price Rs. 750.50
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color: REd
Quantity

Overview

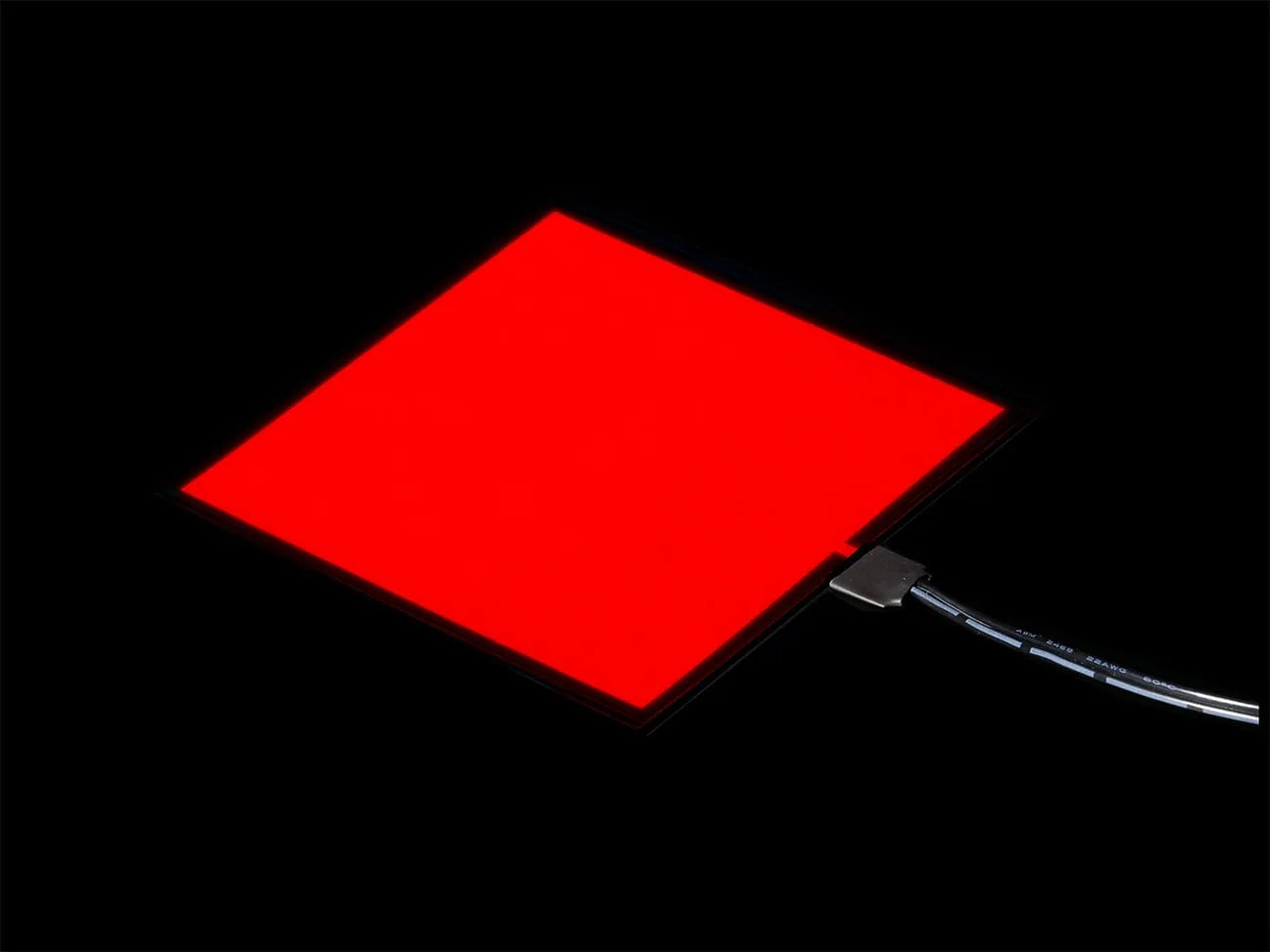

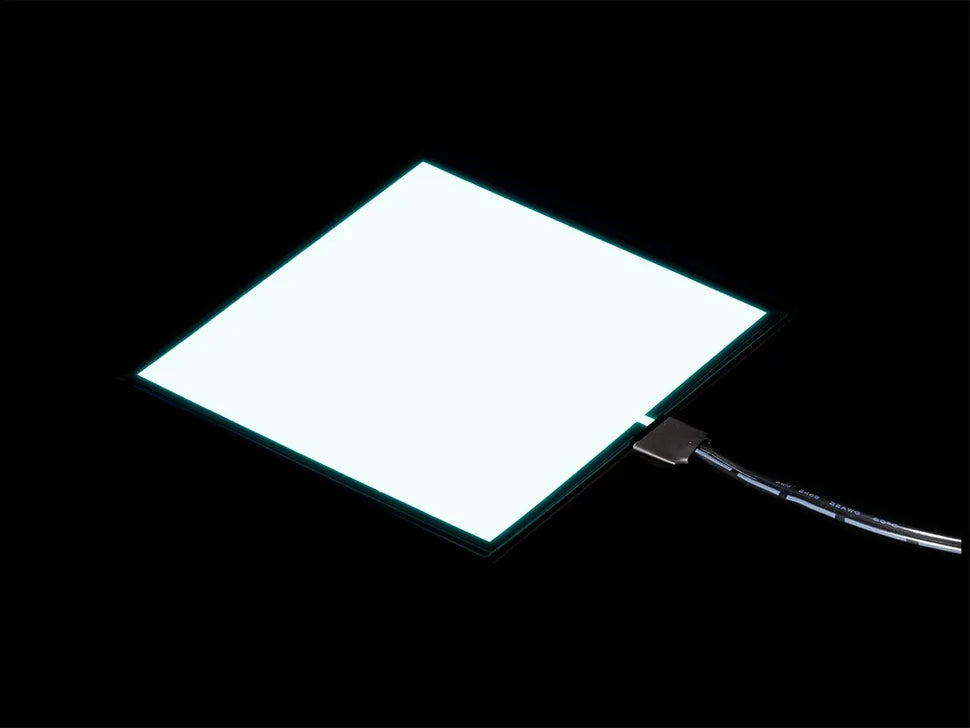

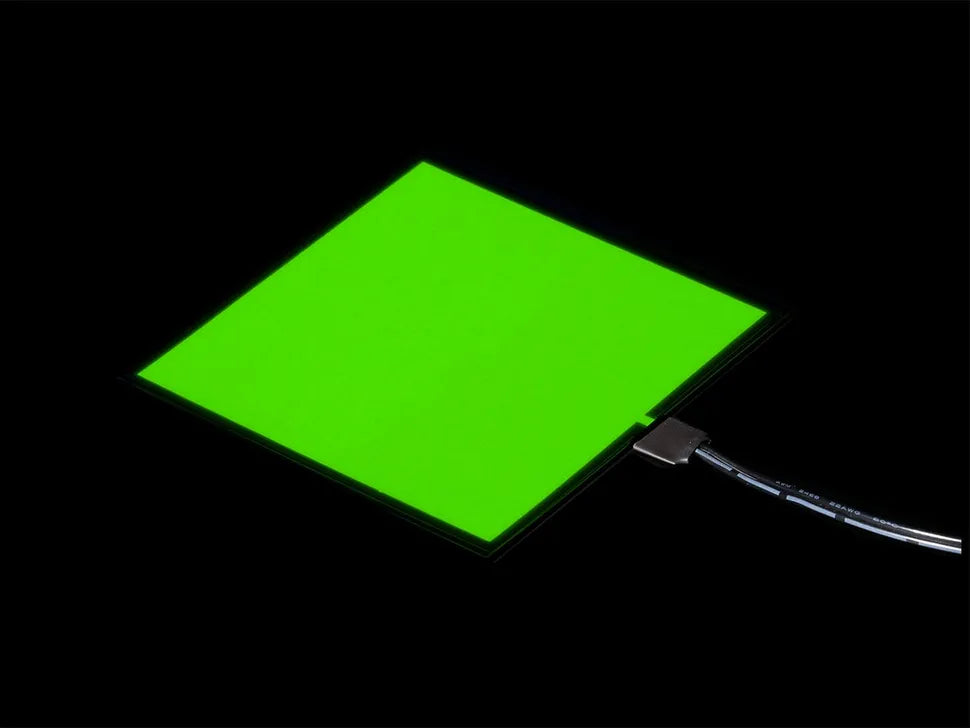

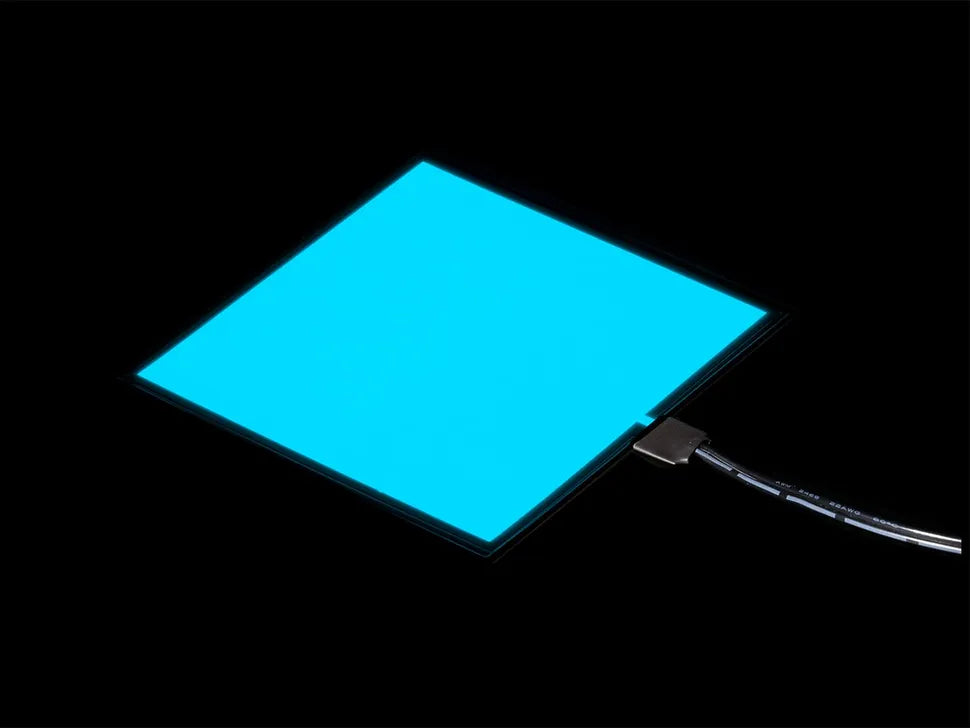

Bring vibrant glow and futuristic style to your next project with this Electroluminescent (EL) Panel powered by a 2xAA pocket inverter box. Thin, flexible, and lightweight, this panel emits a uniform neon-like light that’s perfect for costumes, signage, backlighting, or DIY lighting effects.

Simply connect the included inverter box, insert two AA batteries, and watch your panel come to life with a steady or flashing glow. The inverter operates silently and efficiently, making it suitable for portable and creative applications where traditional LEDs or bulbs can’t fit.

Whether you’re enhancing your cosplay outfit, lighting up a poster, or designing custom ambient decor, this EL panel delivers cool illumination with minimal power consumption.

Specification

Technical details Electroluminescent EL Panel with 2xAA Pocket Inverter Box.

Specification Details
Panel Thickness 0.4mm – 0.8mm (thinner than standard film)
Power Consumption 0.007 – 0.01 W/sq.cm
Lifespan 5000 – 8000 hours (half-brightness life)
Operating Frequency 400 – 2000 Hz
Power Supply DC 3V / 6V / 9V / 12V / 24V or AC 110V / 220V (depends on driver)
Functions Steady / Flash / Sound-activated modes (requires matching driver or battery pack)
Panel Dimensions 10 cm × 10 cm (emitting area slightly smaller by ~2 mm)
Luminance 80 – 180 cd/m² (similar to smartphone screen brightness)
Current ≤ 0.15 mA/cm²
Operating Temperature –25°C to +75°C
View full details
