Arduino UNO R3 (Genuine)

Overview

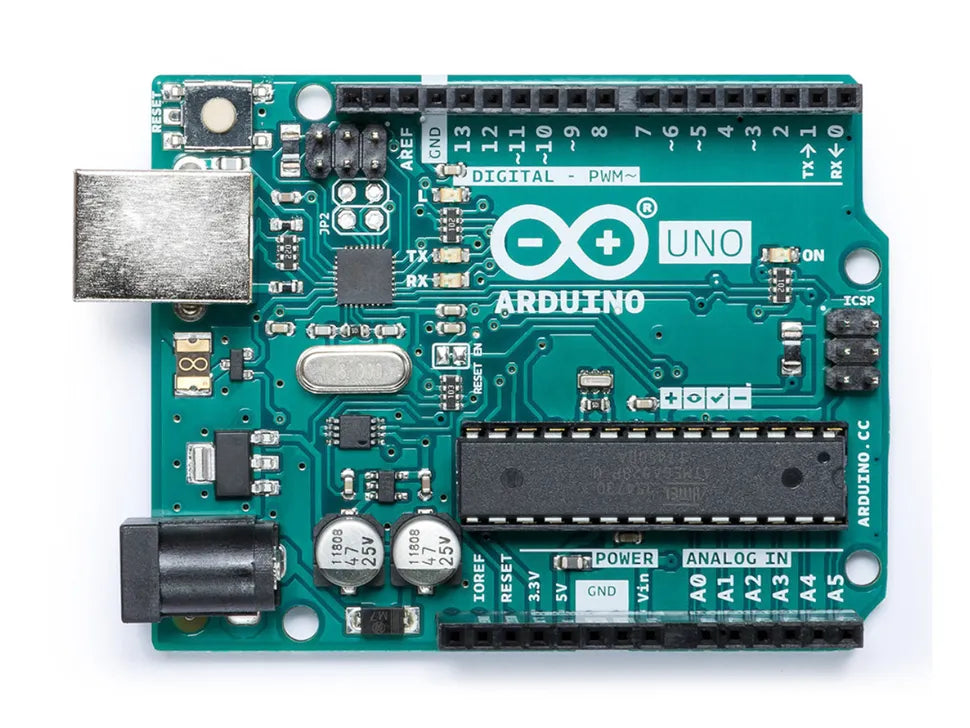

Arduino UNO Rev 3 is a microcontroller based board powered by a atmel ATmega328 microcontroller (MCU). ATmega328 is an 8 bit with 32KB in-system self-programmable flash memory and 2KB of RAM. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.

Arduino UNO Rev 3 is powered either through USB after connecting to a computer or with an external DC power supply (7-12V DC) through the power jack or you can use a battery.

The USB to serial communication is handled by the on board ATmega16u2, thus no need of an external USB to serial programmer.

Arduino UNO is a perfect board for those who are just starting their journey in the field of electronics controlled by digital circuits which includes the microcontroller (MCU), sensors, actuators, switches etc.

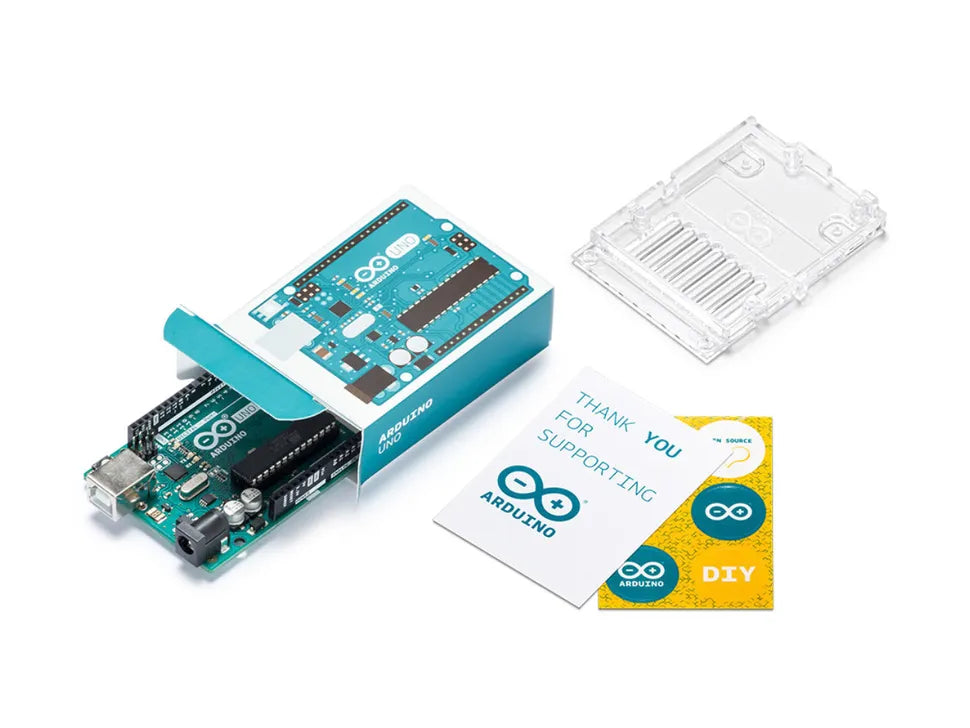

What's in the Box?

What's included in the box?

• Arduino UNO Rev3 Board
• Plastic Holder

SPECIFICATION

Arduino UNO board specification

• Microcontroller
  ATmega328P
• OPERATING VOLTAGE
  5V
• INPUT VOLTAGE (RECOMMENDED)
  7-12V
• INPUT VOLTAGE (LIMIT)
  6-20V
• DIGITAL I/O PINS
  14 (of which 6 provide PWM output)
• PWM DIGITAL I/O PINS
  6
• ANALOG INPUT PINS
  6
• DC CURRENT PER I/O PIN
  20 mA
• DC CURRENT FOR 3.3V PIN
  50 mA
• FLASH MEMORY
  32 KB (ATmega328P) of which 0.5 KB used by bootloader
• SRAM
  2 KB (ATmega328P)
• SRAM
  1 KB (ATmega328P)
• CLOCK SPEED
  16 MHz
• LED_BUILTIN
  13
• DIMENSIONS
  68.6 x 53.4 mm
• WEIGHT
  25 g
