Arduino Due

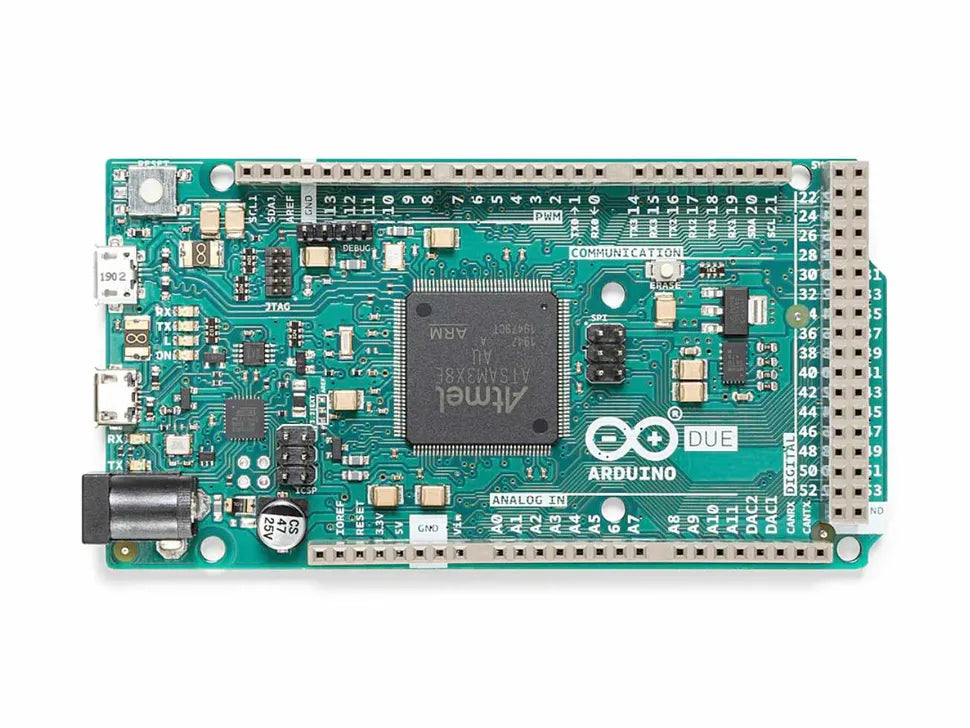

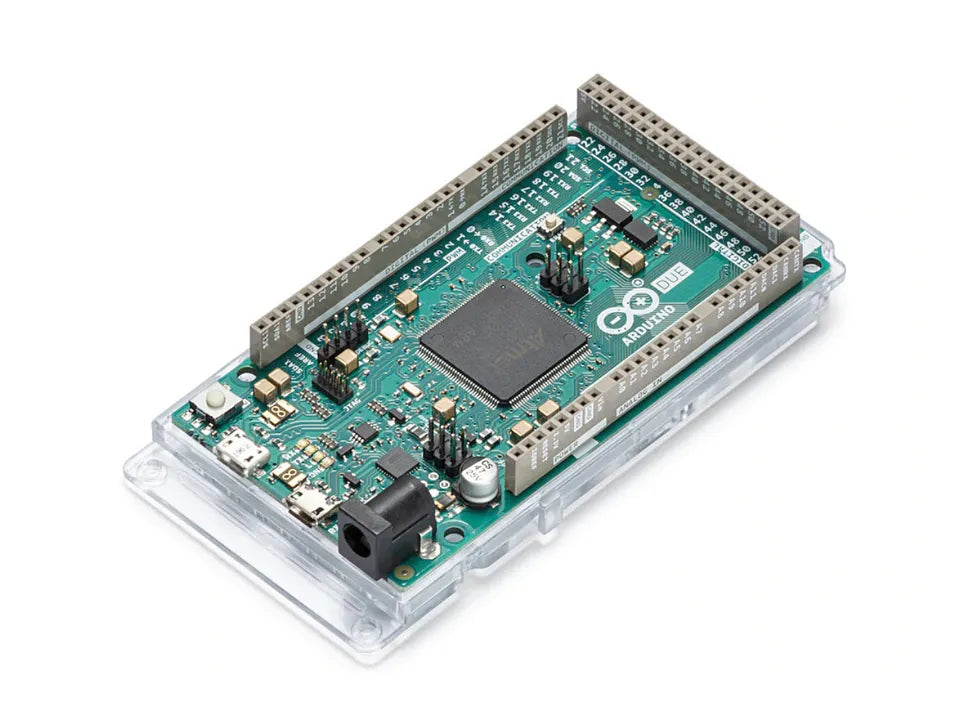

Arduino Due Overview

The Arduino Due, built on the powerful AT91SAM3X8E, is a groundbreaking board in the Arduino lineup. Featuring a 32-bit ARM core microcontroller, this dynamic platform combines enhanced capability with classic Arduino usability. Boasting 54 versatile digital input/output pins, 12 high-definition analog inputs, and 2 precise analog outputs (DAC), the Arduino Due is an exceptional choice for enthusiasts and professionals alike.

Effortlessly power the board through a USB connection or an external power source. Its smart auto-select feature ensures optimal power management. With a 3.3V operating voltage, the Due stands out from other Arduino boards, providing enhanced analog write operations on specific pins.

Arduino Due Specifications

• Microcontroller: AT91SAM3X8E
• Operating Voltage: 3.3V
• Recommended Input Voltage: 7-12V
• Input Voltage Limits: 6-16V
• Digital I/O Pins: 54 (including 12 with PWM output)
• Analog Input Pins: 12
• Analog Output Pins (DAC): 2
• 3.3V Pin DC Current: 800 mA
• 5V Pin DC Current: 800 mA
• Flash Memory: 512 KB
• SRAM: 96 KB
• Clock Speed: 84 MHz
• Dimensions: 101.52 x 53.3 mm
• Weight: 36 g
