Overview

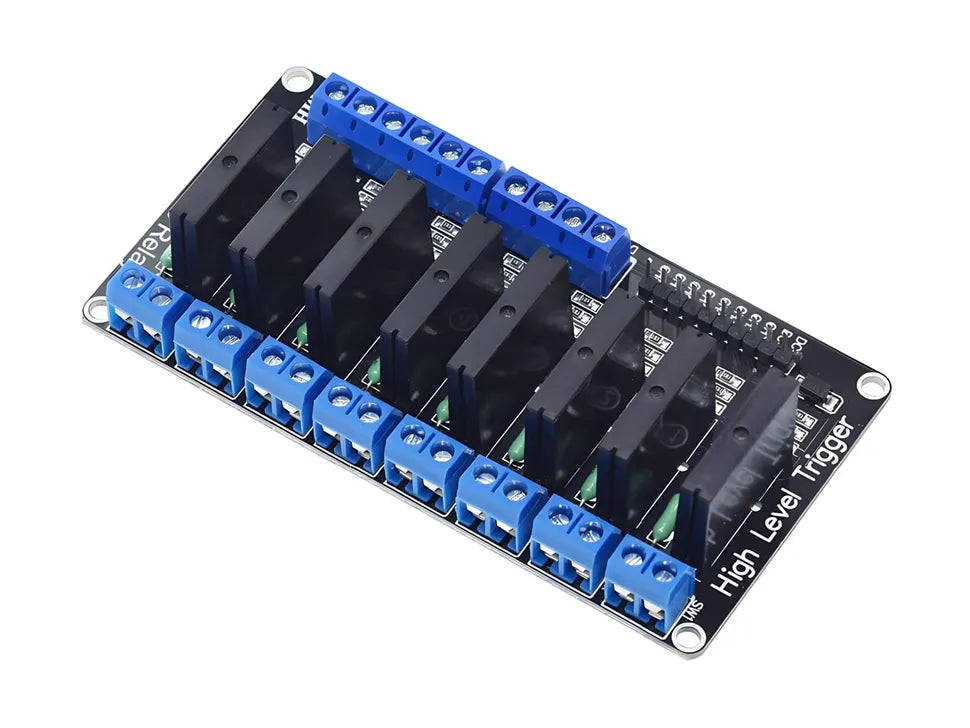

The 8 Channel 2A SSR (Solid State Relay) Module is a reliable and efficient electronic switching device designed for various automation and control applications. It supports a rated voltage of 5V, 12V and 24V making it compatible with a range of microcontrollers and development boards such as Arduino and Raspberry Pi. With a maximum operating current of 26.8mA, it ensures low power consumption.
This module offers both high and low-level trigger options, allowing flexible integration with various control systems. It supports a load voltage of up to 240VAC and can handle a load current of 2A, making it ideal for controlling small appliances, lighting systems, or industrial equipment.
The module has a lifespan of up to 10 million switching cycles and operates with a maximum switching frequency of ≤ 5kHz.
Weighing just 70g and measuring 105 x 55 x 25 mm (L x W x H), the module is compact and easy to install. It features mounting holes positioned at 99.4 x 49.4 mm for secure attachment.
