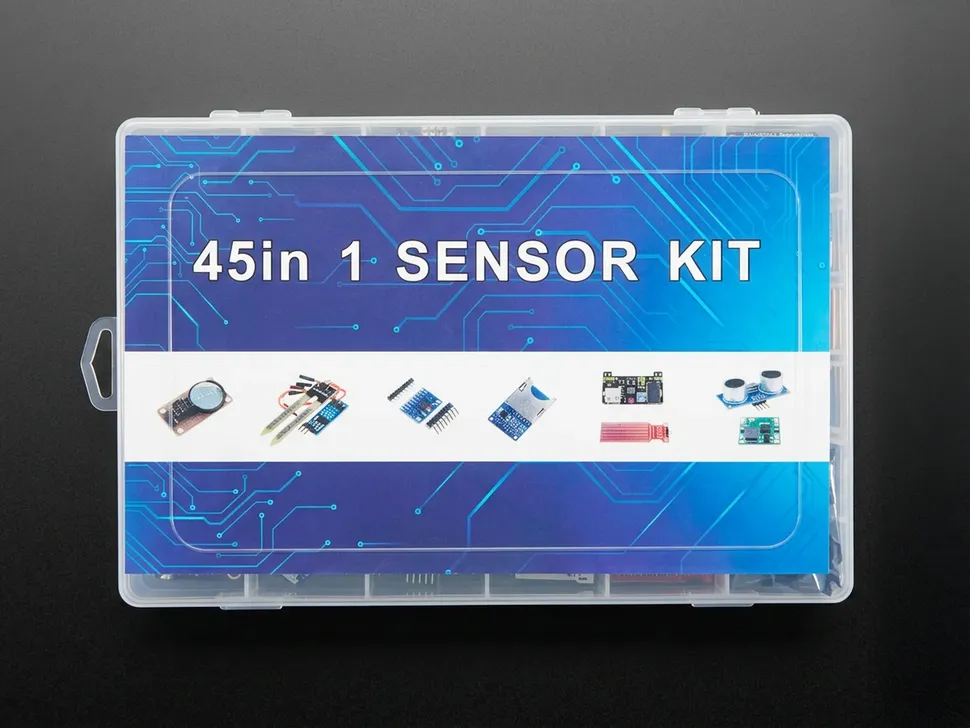

45 in 1 Sensor Module Kit for Arduino & Raspberry Pi
45 in 1 Sensor Module Kit for Arduino & Raspberry Pi
SKU:AL3D0721
Low stock: 6 left
Regular price
Rs. 2,649.57
Regular price
Sale price
Rs. 2,649.57
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Overview
Unlock endless electronics experiments with this 45-in-1 Sensor Module Kit, designed for Arduino, Raspberry Pi, ESP32, STM32 and other microcontroller platforms. Whether you are a beginner learning embedded systems or an advanced maker building IoT and robotics projects, this comprehensive kit gives you everything you need in one organized package.
From motion detection and temperature sensing to sound, light, magnetic, and distance measurement, this kit covers almost every core concept in electronics and physical computing.
Specification
Quick specificatons for 45 in 1 Sensor Module Kit.
| Specification | Details |
|---|---|
| Number of Modules | 45 Different Sensor & Utility Modules |
| Microcontroller Compatibility | Arduino, Raspberry Pi, ESP32, ESP8266, STM32, AVR and other 3.3V/5V boards |
| Operating Voltage | 3.3V – 5V DC (Module dependent) |
| Signal Type | Analog & Digital Output (Module dependent) |
| Communication Interfaces | Digital IO, Analog IO, I2C (MPU6050), 1-Wire (DS18B20), SPI (SD Card Module) |
| Included Sensor Categories | Motion, Environmental, Magnetic, Optical, Sound, Temperature, Distance, Control & Switching |
| Mounting Type | PCB-mounted modules with header pins |
| Pin Type | Standard 2.54mm pitch header pins |
| Application Areas | Robotics, IoT Projects, STEM Education, Prototyping, Automation Systems |
| Storage | Organized storage box (varies by batch) |

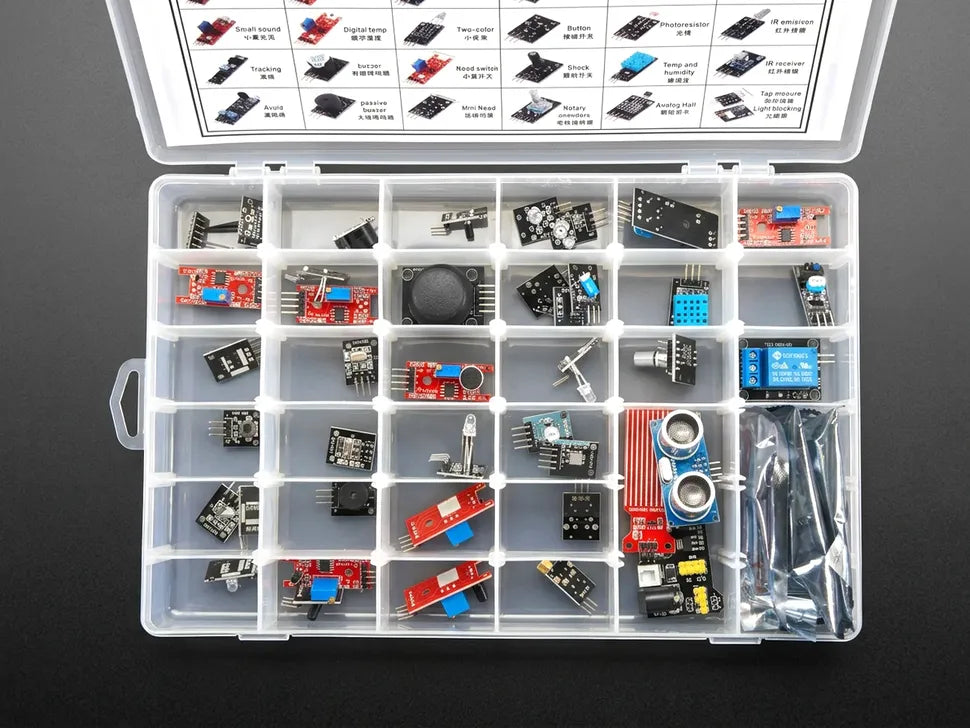

What's Included
| # | Module Name | Qty |
|---|---|---|
| 1 | Clock (RTC) Module | 1 |
| 2 | Soil Moisture Sensor | 1 |
| 3 | MPU6050 Accelerometer & Gyroscope | 1 |
| 4 | SD Card Reader Module | 1 |
| 5 | 3.3V / 5V Power Supply Module | 1 |
| 6 | Water Level Sensor | 1 |
| 7 | HC-SR04 Ultrasonic Sensor | 1 |
| 8 | MP1584EN DC-DC Buck Converter | 1 |
| 9 | Joystick (XY Axis) | 1 |
| 10 | Flame Sensor | 1 |
| 11 | RGB LED Module | 1 |
| 12 | Heartbeat Sensor | 1 |
| 13 | Light Cup Module | 1 |
| 14 | Hall Magnetic Sensor | 1 |
| 15 | Relay Module | 1 |
| 16 | Linear Hall Sensor | 1 |
| 17 | SMD RGB LED | 1 |
| 18 | 7-Color Flash LED | 1 |
| 19 | Tilt Switch | 1 |
| 20 | DS18B20 Temperature Sensor | 1 |
| 21 | Big Sound Sensor | 1 |
| 22 | Touch Sensor | 1 |
| 23 | Two-Color LED (Large) | 1 |
| 24 | Laser Emitter Module | 1 |
| 25 | Ball Switch | 1 |
| 26 | Analog Temperature Sensor | 1 |
| 27 | Small Sound Sensor | 1 |
| 28 | Digital Temperature Sensor | 1 |
| 29 | Two-Color LED (Small) | 1 |
| 30 | Button Module | 1 |
| 31 | Photoresistor (LDR) | 1 |
| 32 | IR Emitter | 1 |
| 33 | Line Tracking Sensor | 1 |
| 34 | Active Buzzer | 1 |
| 35 | Reed Switch | 1 |
| 36 | Shock Sensor | 1 |
| 37 | Temperature & Humidity Sensor (DHT11) | 1 |
| 38 | IR Receiver | 1 |
| 39 | Obstacle Avoidance Sensor | 1 |
| 40 | Passive Buzzer | 1 |
| 41 | Mini Reed Switch | 1 |
| 42 | Rotary Encoder | 1 |
| 43 | Analog Hall Sensor | 1 |
| 44 | Tap Module | 1 |
| 45 | Light Blocking Sensor | 1 |
