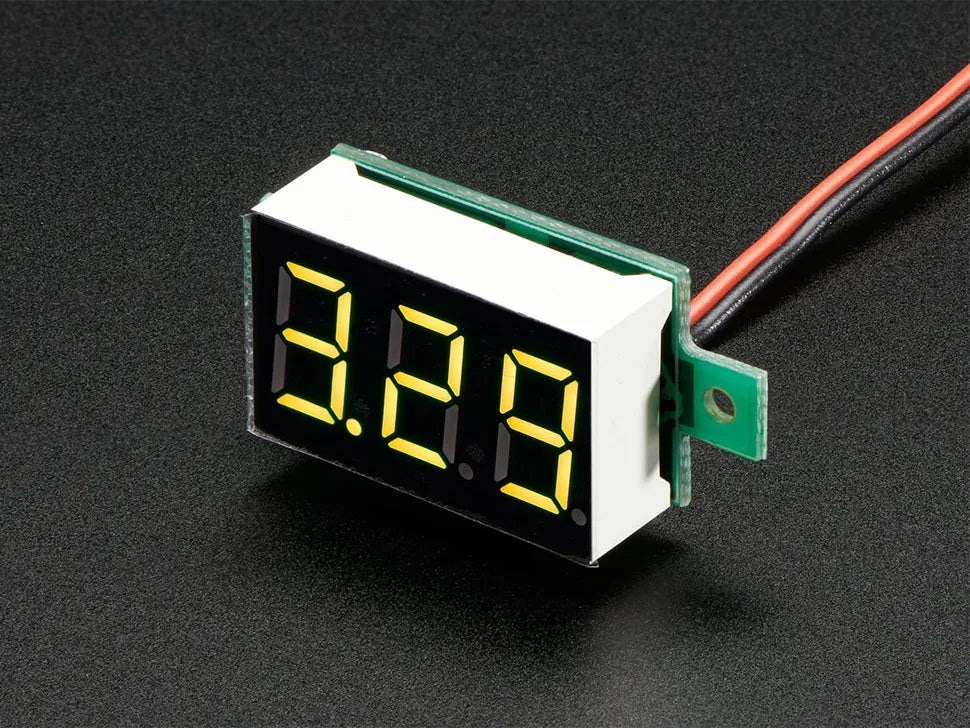

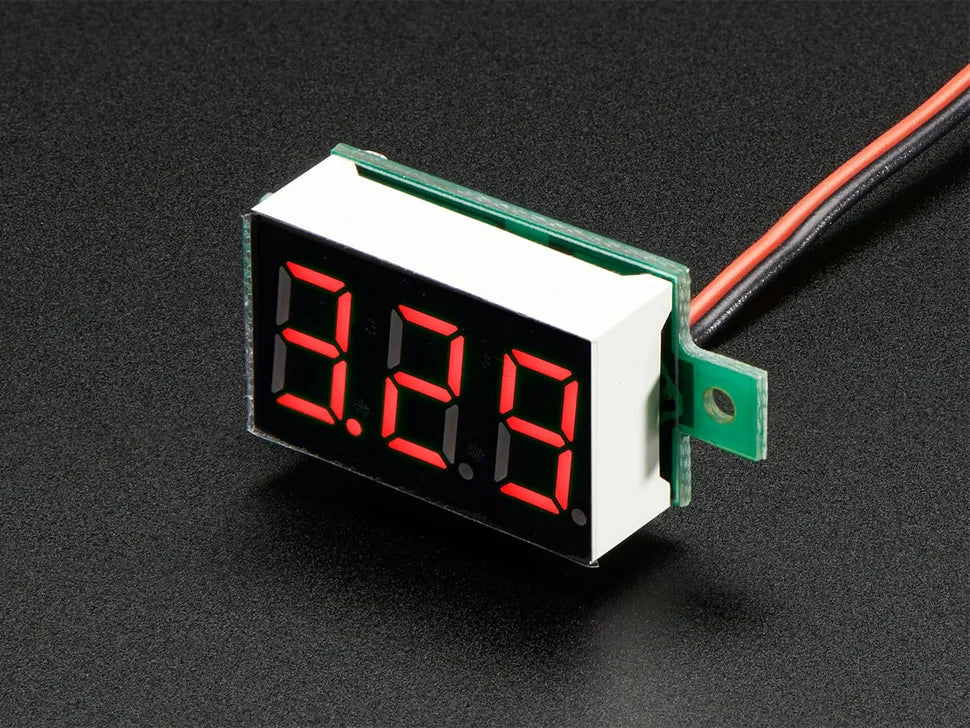

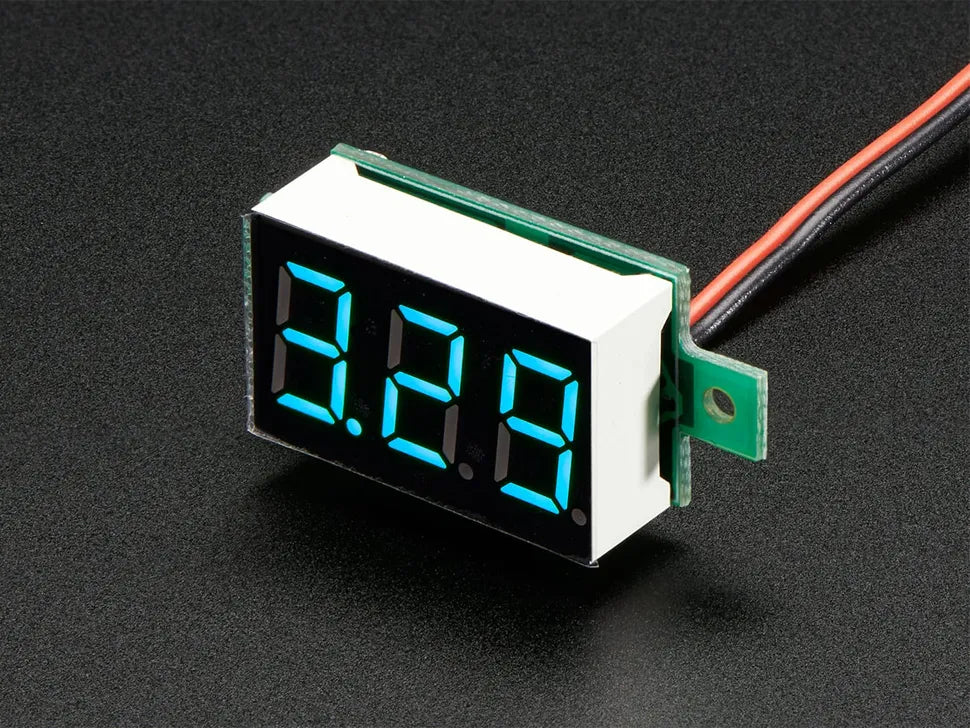

A mini 2-wire voltmetermeasures a DC (Direct Current) voltageranging from 2.5 to 40V DCand has a0.28 inch LED display. The 2-wire configuration has a red and black wires. It is a commonly used configuration for measuring electrical potential difference across two points in a circuit using only two connection wires.
The 2-wire setup is easy to install and use, often ideal for quick voltage checks in the field.
Specification
Measuring Range
2.5 - 40V DC
Working Voltage
Red: 2.5 - 40V DC Green: 2.6 - 40V DC Blue: 3.2 - 40V DC Yellow: 3.2 - 40V DC
Tolerance
±1%
Current
3 - 4mA
Refresh Rate
200 milliseconds
Display
3 Digit, 0.28 inch LED
Display Color
Red, Green, Blue or Yellow
Wire Length
15cm
Dimensions
23mm x 15mm x 10mm
Mounting Holes
2x 1.9mm
Connection & Pinout
Connection and pinout for 2-wire voltmeter
Red Wire
Positive Terminal Connects to the positive side of the circuit.
Black Wire
Negative Terminal Connects to the negative side of the circuit.
