2-wire Battery Capacity Voltmeter with 0.56 inch Waterproof LED Display Panel - 12V ~ 60V DC

SKU:AL3D0007

Out of stock

Rs. 151.63

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color: REd

Overview

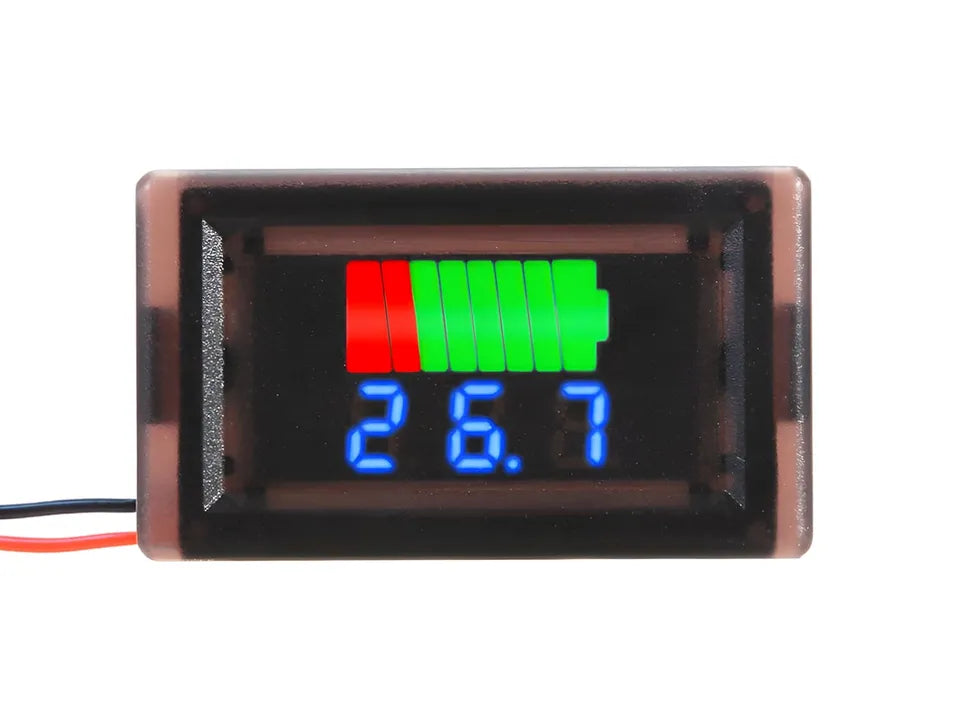

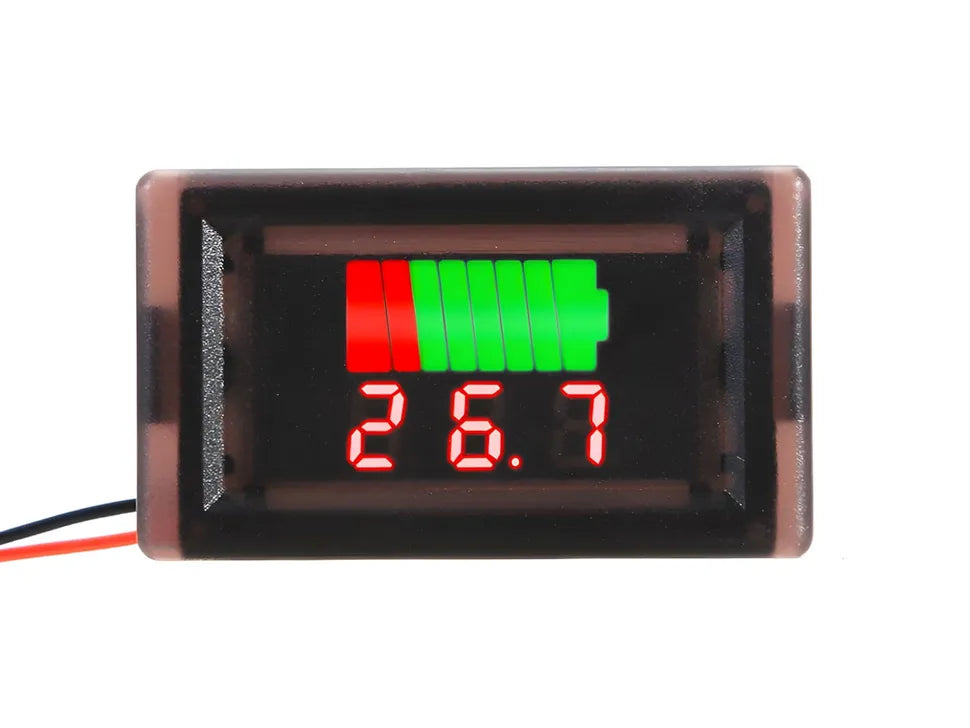

This is a digital battery capacity and voltmeter indicator which features a 3-digit 0.56" LED display available in red or blue. Designed for accuracy, it offers an 8-segment battery level indicator ranging from 10% to 100%, with an impressive ±2% voltage accuracy.

It operates efficiently with a current draw of just 5–15mA and refreshes every 300ms for real-time monitoring. With dimensions of 53×29×24mm and a mounting hole size of 47×27mm, this lightweight module (just 29g) is easy to install and ideal for a variety of battery-powered applications.

It supports a working temperature range of -10°C to 65°C, ensuring reliable performance in diverse environments.

Specification

Technical details for 2-wire Battery Capacity Voltmeter with 0.56 inch Waterproof LED Display Panel.

Specification	Details
Voltage Tolerance	±2%
8-Level Battery Display	10%, 25%, 40%, 50%, 60%, 75%, 90%, 100%
Operating Current	5–15mA
Refresh Rate	Approximately once every 300ms
Display Type	3-digit 0.56” LED Digital Tube
Display Color	Red, Blue
Wire Length	15 cm
Dimensions	53 × 30 × 24 mm (L × W × H)
Mounting Hole	47 × 27 mm
Net Weight	29g
Gross Weight	29g
Operating Temperature	-10°C ~ 65°C
