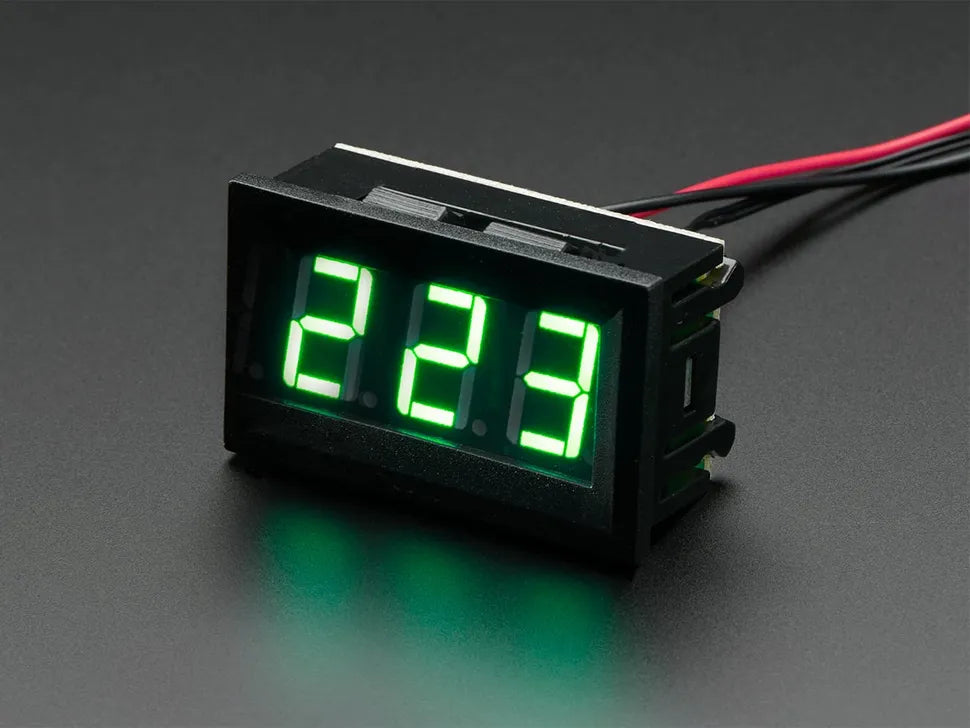

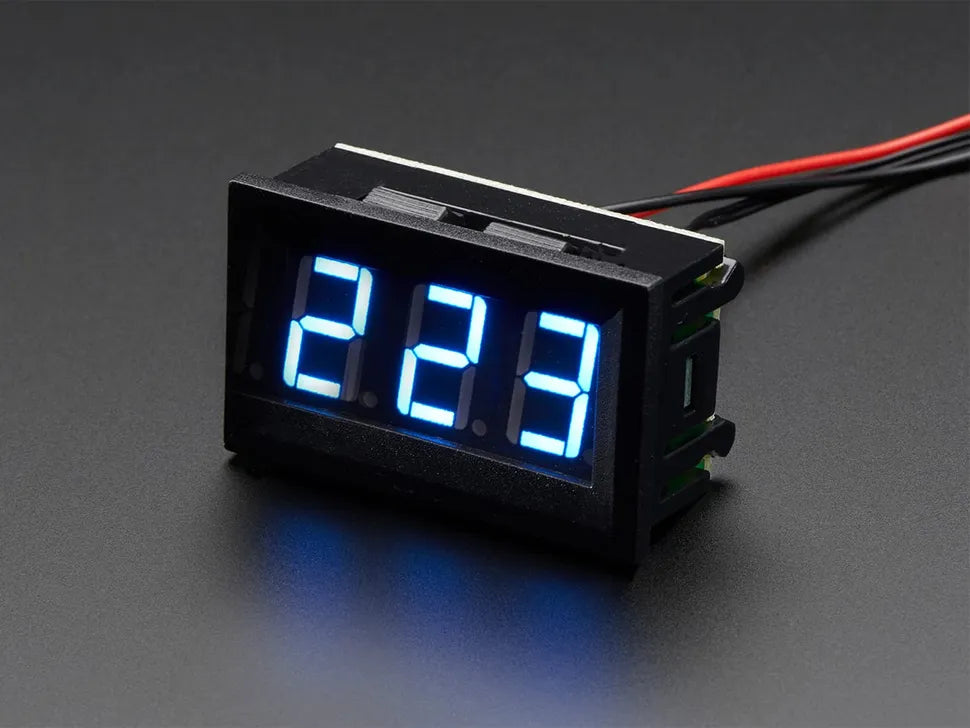

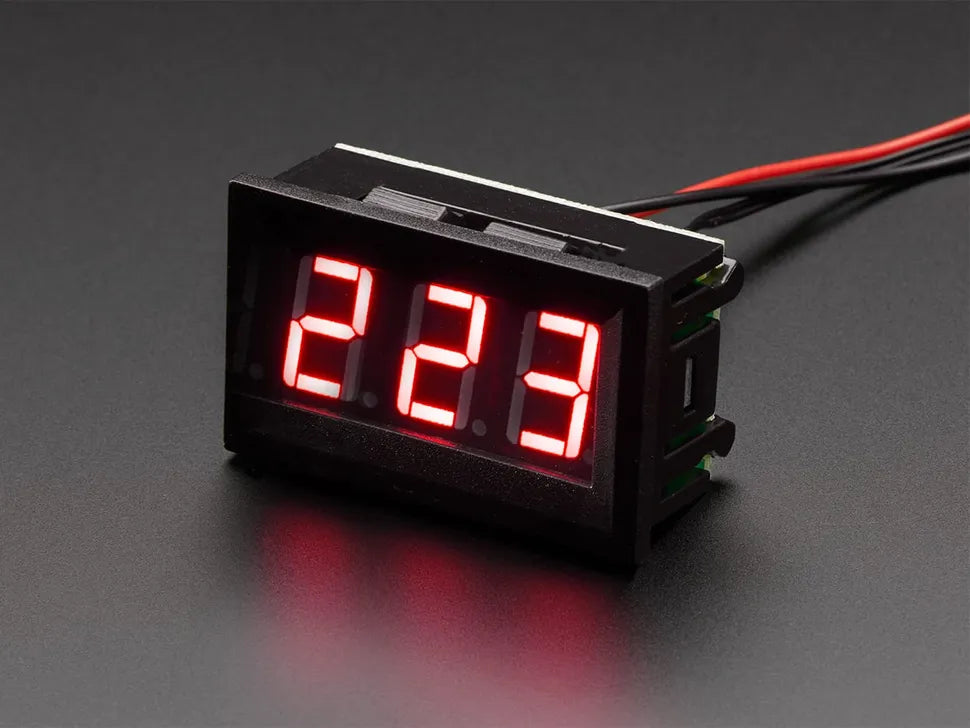

A mini 2-wire voltmetermeasures a AC (Alternating Current), voltageranging from 70 to 500V ACand has a0.56 inch LED display. The 2-wire configuration has a red and black wires. It is a commonly used configuration for measuring voltage in an AC circuit.
Specification
Model
DSN-DVM-568AC
Measuring Range
70 - 500V AC
Input Voltage
70 - 500V AC Input voltage higher than 500V AC may cause permanent damage.
Tolerance
±1%
Input Impedance
>1M ohm
Current Consumption
Red: < 23mA Green: < 18mA Blue: < 17mA
Refresh Rate
300 milliseconds
Display
3 Digit, 0.56 inch LED
Display Color
Red, Green or Blue
Wire Length
20cm
Dimensions
48mm x 29mm x 22mm
Connection & Pinout
Connection and pinout for 2-wire AC voltmeter
Red Wire
Live Wire Connects to the live terminal of the circuit.
Black Wire
Neutral Wire Connects to the neutral terminal of the circuit
