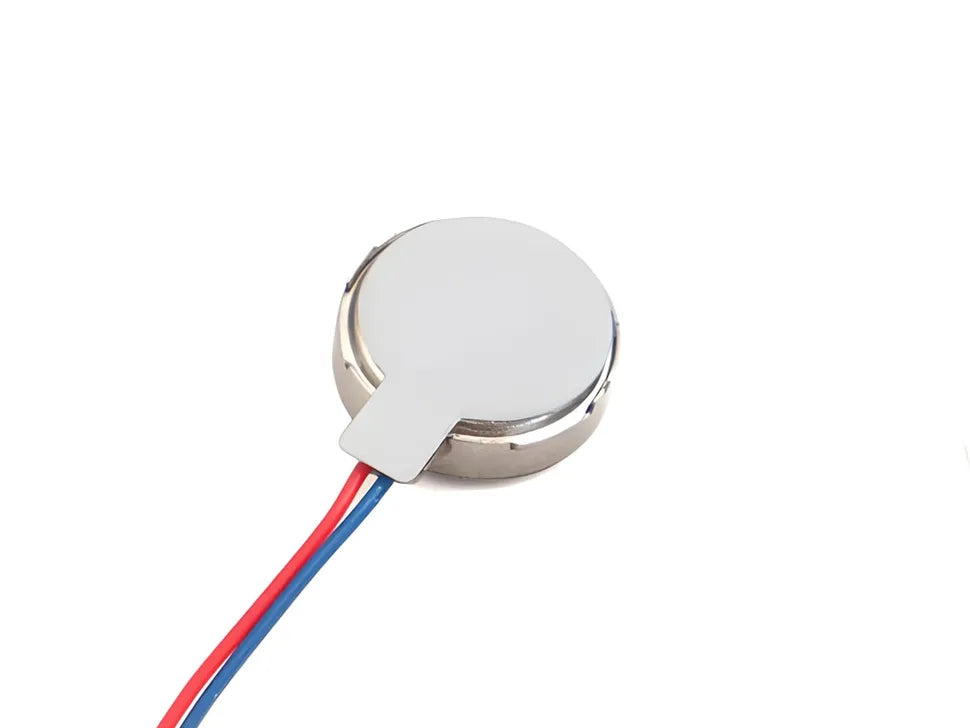

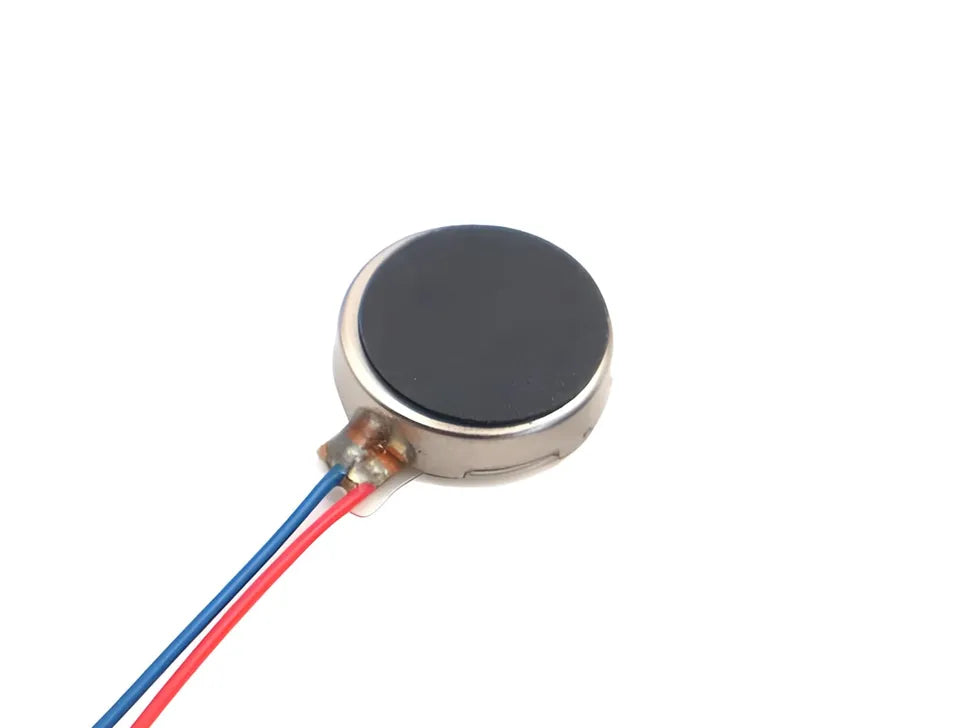

1027 Flat Vibrating Mini Motor Disc
1027 Flat Vibrating Mini Motor Disc
SKU:AL3D0279
200 in stock
Couldn't load pickup availability
Overview
The 1027 Flat Vibrating Mini Motor Disc is a tiny and lightweight vibration motor, perfect for applications requiring haptic feedback in tight spaces such as wearables, handheld devices, or compact electronics.
Operating at a voltage range of 2.3V to 4.0V DC and rated at 3.0V, this motor delivers a speed of approximately 11,000 RPM ±2500RPM. It draws a current of around 80mA at 3V, ensuring efficient performance with low power consumption.
Measuring just 10mm in diameter and 2.7mm in thickness, and weighing only 0.8 grams, the motor includes 35mm long wires for easy connectivity and an adhesive backing for quick mounting.
Specification
Technical details for 1027 Flat Vibrating Mini Motor Disc.
| Specification | Details |
|---|---|
| Model | 1027 Flat Vibrating Mini Motor Disc |
| Operating Voltage | 2.3V – 4.0V DC |
| Rated Voltage | 3.0V DC |
| Rated Current | 80 mA (at 3V) |
| Speed | 11,000 RPM ±2500RPM (at 3V) |
| Rotation | Clockwise or Anti-clockwise |
| Body Diameter | 10 mm |
| Body Thickness | 2.7 mm |
| Wire Length | 35 mm (approx.) |
| Mounting Type | Adhesive Backing |
| Weight | 0.8 g |
Dimensions & Pinout
| Pin | Name | Color | Function |
|---|---|---|---|
| 1 | +ve | Red | Postive Terminal 2.3V ~ 4.0V DC |
| 2 | -ve | Blue | Negative Terminal |
