1020 Flat Vibrating Mini Motor Disc
1020 Flat Vibrating Mini Motor Disc
SKU:AL3D0278
Out of stock
Couldn't load pickup availability
Overview

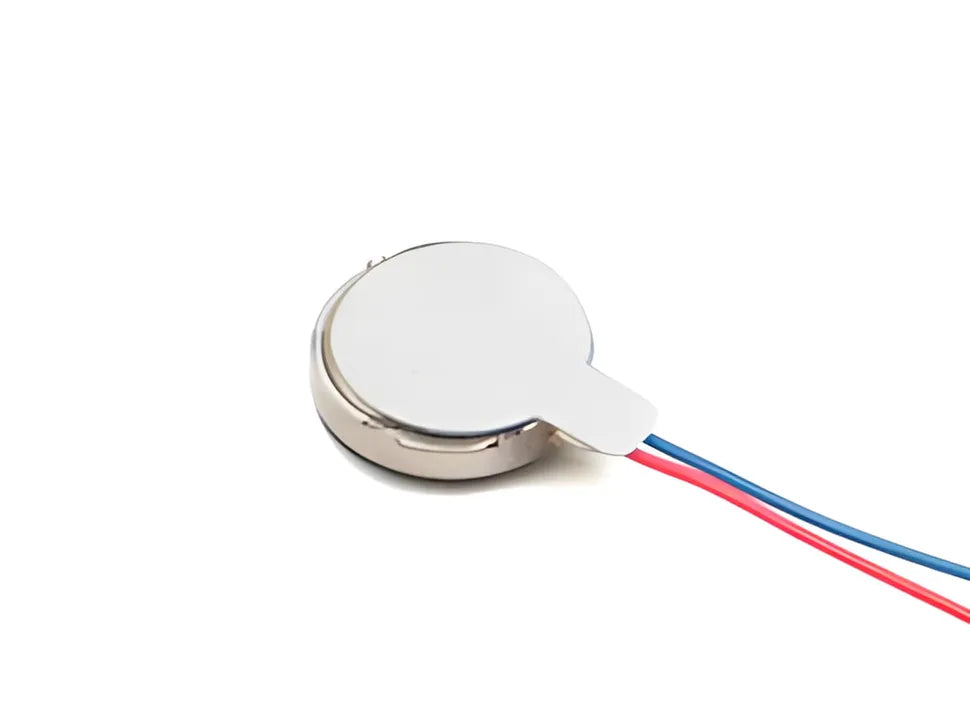

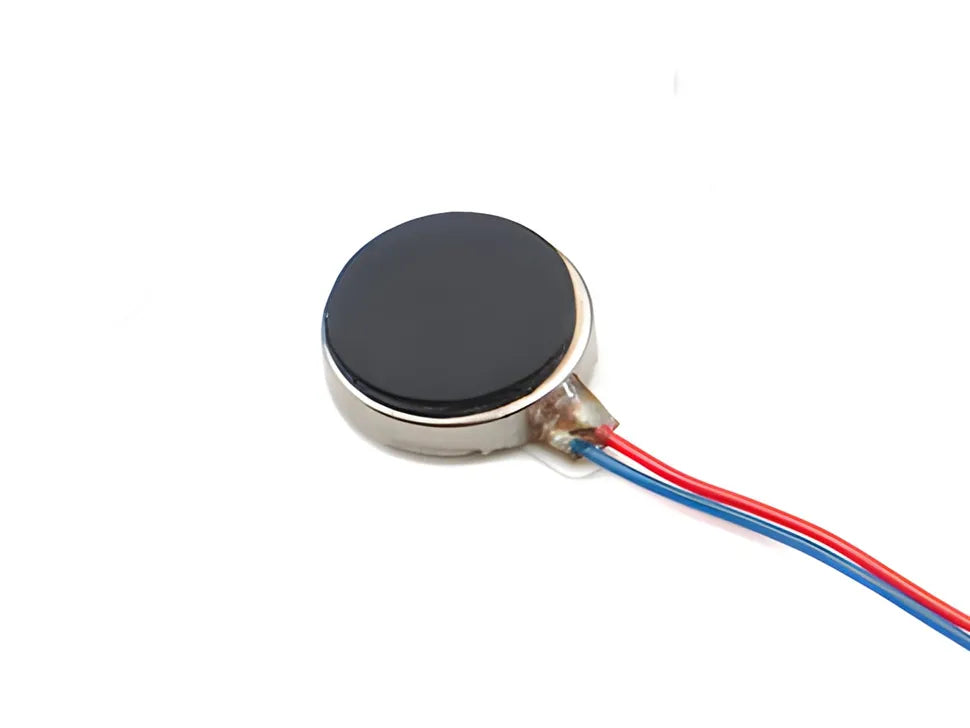

The 1020 Flat Vibrating Mini Motor Disc is a tiny flat button shaped vibration motor ideal for applications such as wearable devices, haptic feedback systems, and portable electronics.
Operates at a rated voltage of 3V DC, with a working voltage range between 2.5V and 3.5V. It delivers a rated speed of approximately 13,000 ±2,500 RPM while consuming a maximum current of 80 mA, making it suitable for low-power hardware designs.
With a slim and lightweight design measuring 10 mm in diameter and just 2.0 mm thick, and weighing around 0.8 grams, it easily fits into space-constrained projects. It comes pre-soldered with wire leads approximately 30 mm long and adhesive backing allowing for quick and easy integration into your prototypes or final products.
Specification
Technical details for 1020 Flat Vibrating Mini Motor Disc.
| Specification | Details |
|---|---|
| Model | 1020 |
| Rated Voltage | 3V DC |
| Operating Voltage Range | 2.5V – 3.5V DC |
| Rated Speed | 13,000 ±2,500 RPM |
| Rotation | Clockwise or Anti-clockwise |
| Rated Current | 80 mA (max) |
| Start Voltage | 2.0V DC |
| Dimensions | 10 mm (diameter) x 2.0 mm (thickness) |
| Wire Leads | Pre-soldered, ~30mm length |
| Mounting | Adhesive Backing |
| Weight | ~0.8 grams |
Dimensions & Pinout
| Pin | Name | Color | Function |
|---|---|---|---|
| 1 | +ve | Red | Postive Terminal 2.5V ~ 3.5V DC |
| 2 | -ve | Blue | Negative Terminal |
